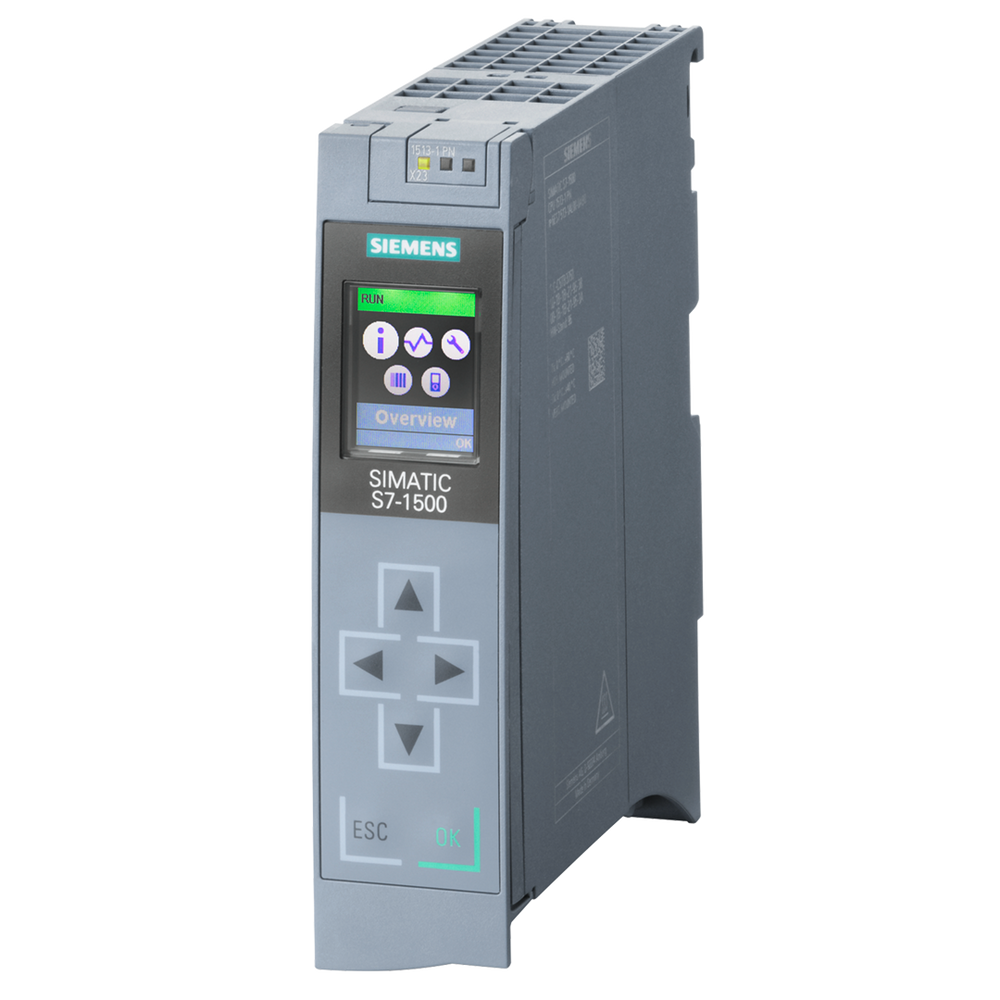

Siemens SIMATIC S7-1500, CPU 1513-1 PN***Spare part*** Part number 6ES7513-1AL00-0AB0

EAN / Barcode 4025515080121
Product Type Control Panel
Product Class PLC CPU-module
ETIM Class PLC CPU-module
Back Order
💬 Ask an Expert - Technical Support Available

Product Description

Spare part

SIMATIC S7-1500, CPU 1513-1 PN, Central processing unit with Work memory 300 KB for program and 1.5 MB for data, 1st interface, PROFINET IRT with 2-port switch, 40 ns bit performance, SIMATIC Memory Card required.

Technical Specifications

country_of_originGermany
Depth129 mm
description***Spare part*** SIMATIC S7-1500, CPU 1513-1 PN, Central processing unit with Work memory 300 KB for program and 1.5 MB for data, 1st interface, PROFINET IRT with 2-port switch, 40 ns bit performance, SIMATIC Memory Card required
Explosion safety category for gasATEX gas-ex-protection, Cat. 3G
Height147 mm
Memory size1800 kByte
ModelModular
Number of HW-interfaces industrial Ethernet1
Number of interfaces PROFINET1
Part Depth (mm)4,60mm
Part Height (mm)15,40mm
Part Width (mm)15,00mm
Processing time (1K, binary operation)0.039999999 ms
Rail mounting possibleYes
Supply voltage DC28.8 V
Supporting protocol for ModbusYes
Supporting protocol for PROFINET IOYes
Supporting protocol for TCP/IPYes
System accessoryYes
Type of memoryOther
Voltage type (supply voltage)DC
Weight (g)0,504 Kg
Width35 mm
With displayYes
