Siemens SIMATIC S7-1500, CPU 1511-1 PN***Spare part*** - Rubicon Partner Portal
📄 Datasheet
Siemens

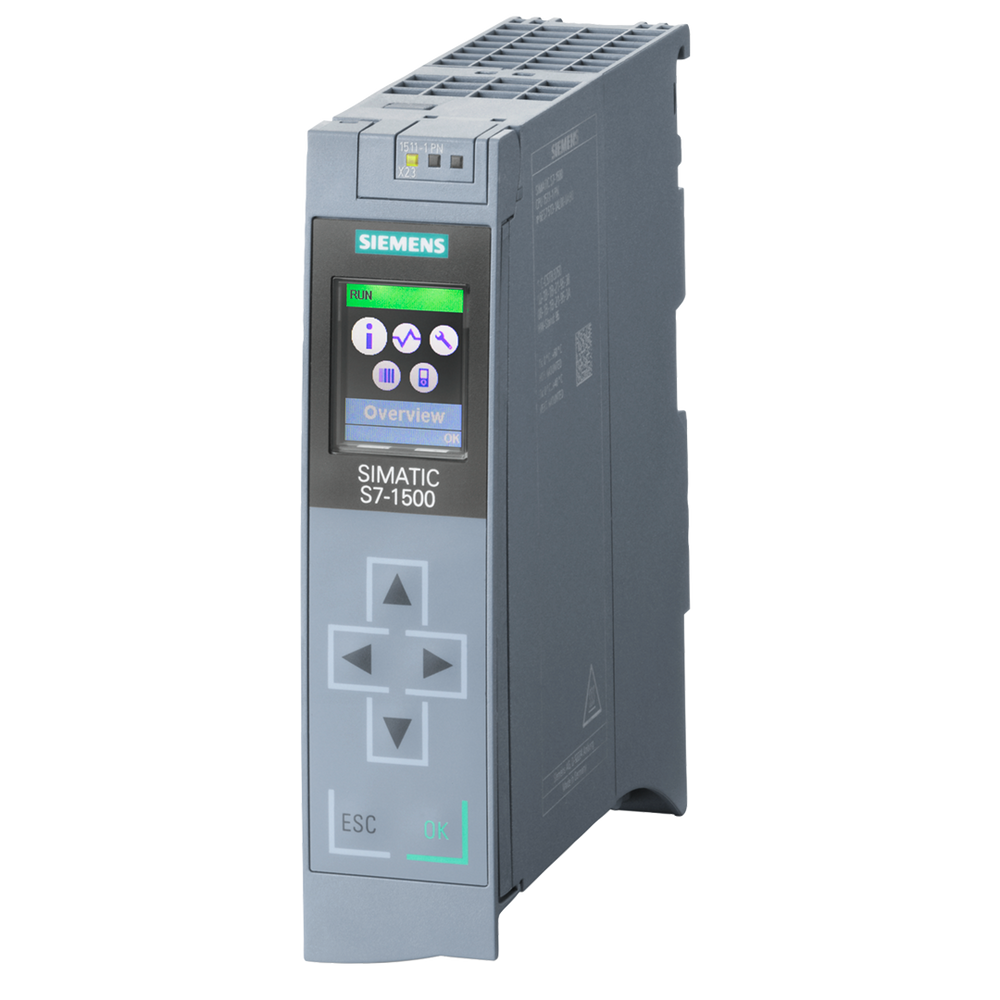

Siemens SIMATIC S7-1500, CPU 1511-1 PN***Spare part*** Part number 6ES7511-1AK00-0AB0

EAN / Barcode 4025515081357
Product Type Control Panel
Product Class PLC CPU-module
ETIM Class PLC CPU-module
Back Order
💬 Ask an Expert - Technical Support Available

Product Description

Spare part

SIMATIC S7-1500, CPU 1511-1 PN, Central processing unit with Work memory 150 KB for program and 1 MB for data, 1st interface, PROFINET IRT with 2-port switch, 60 ns bit performance, SIMATIC Memory Card required

Technical Specifications

country_of_originGermany
Depth129 mm
description***Spare part*** SIMATIC S7-1500, CPU 1511-1 PN, Central processing unit with Work memory 150 KB for program and 1 MB for data, 1st interface, PROFINET IRT with 2-port switch, 60 ns bit performance, SIMATIC Memory Card required
Explosion safety category for gasATEX gas-ex-protection, Cat. 3G
Height147 mm
Memory size1150 kByte
ModelModular
Number of HW-interfaces industrial Ethernet1
Number of interfaces PROFINET1
Part Depth (mm)4,60mm
Part Height (mm)15,40mm
Part Width (mm)15,10mm
Processing time (1K, binary operation)0.06 ms
Rail mounting possibleYes
Supply voltage DC19.2 V
Supporting protocol for ModbusYes
Supporting protocol for PROFINET IOYes
Supporting protocol for TCP/IPYes
System accessoryYes
Type of memoryOther
Voltage type (supply voltage)DC
Weight (g)0,507 Kg
Width35 mm
With displayYes

Videos & Media

Product Overview

Overview, features and application examples
