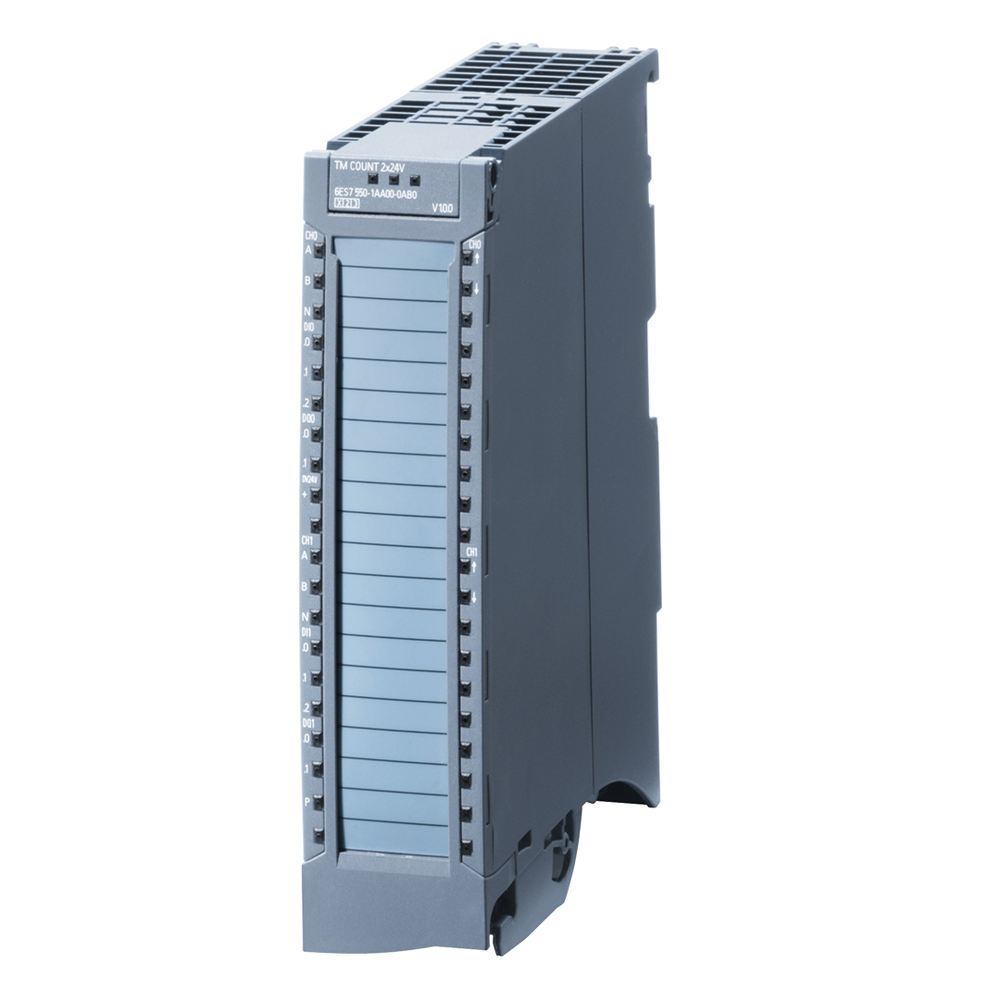

Siemens SIMATIC S7-1500, Counter module TM count 2x24V Part number 6ES7550-1AA00-0AB0

Product Type Control Panel
Back Order
💬 Ask an Expert - Technical Support Available

Product Description

This counter module forms part of the SIMATIC S7-1500 system and provides two channels for 24V incremental or encoder inputs, each with 3 digital inputs and 2 digital outputs. It is used in machine and process applications requiring position or speed counting within a control panel environment. The module complies with IEC 60947-5 and IEC 61131 standards.

Technical Specifications

Compliance/StandardsIEC 60947-5, IEC 61131
Part Width (mm)16,10mm
Part Height (mm)19,30mm
Part Depth (mm)5,00mm
Weight (g)0,384 Kg
descriptionSIMATIC S7-1500, TM count 2x24 V counter module, 2 channels for 24 V incremental or encoder 3 DI, 2 DQ per channel
country_of_originGermany
