Siemens

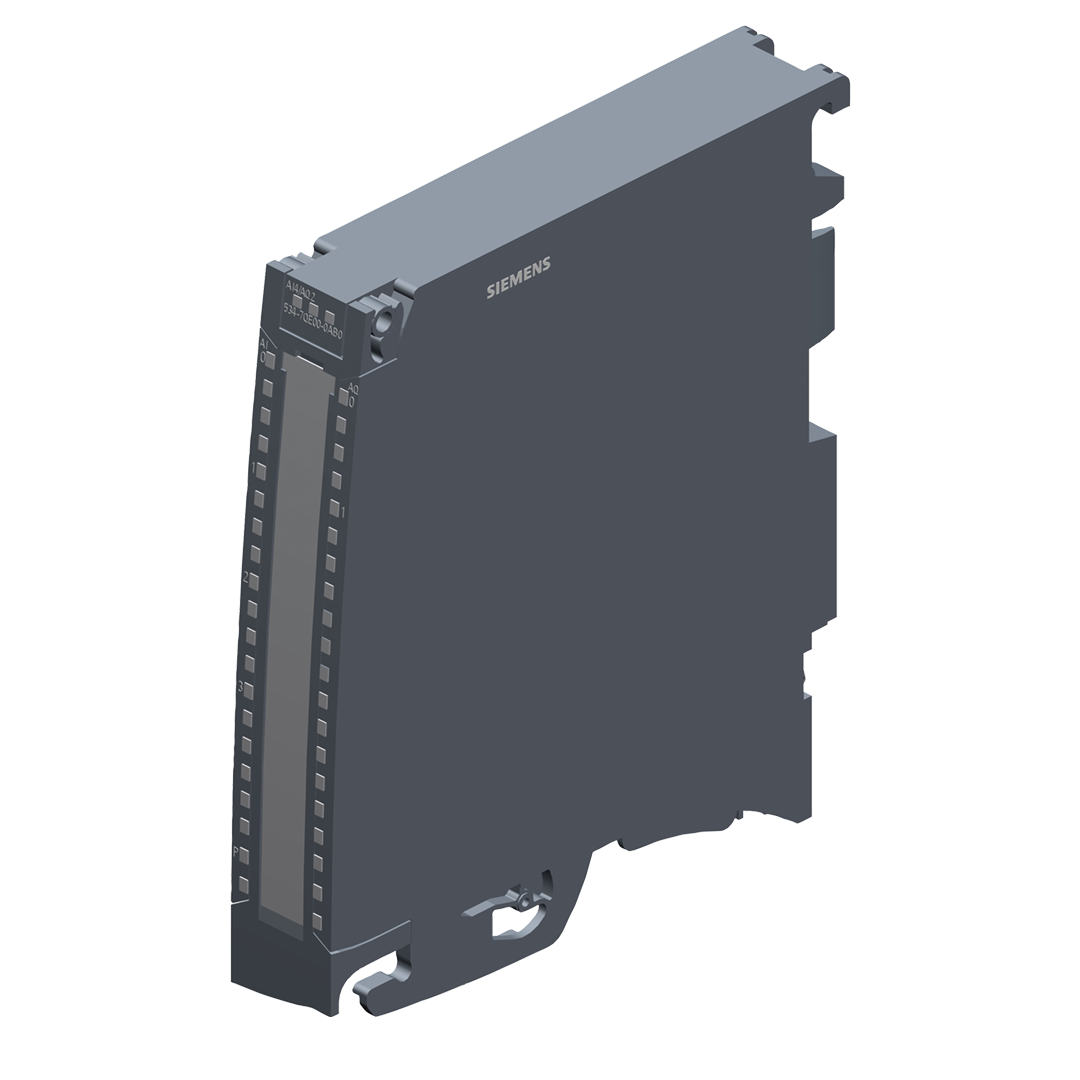

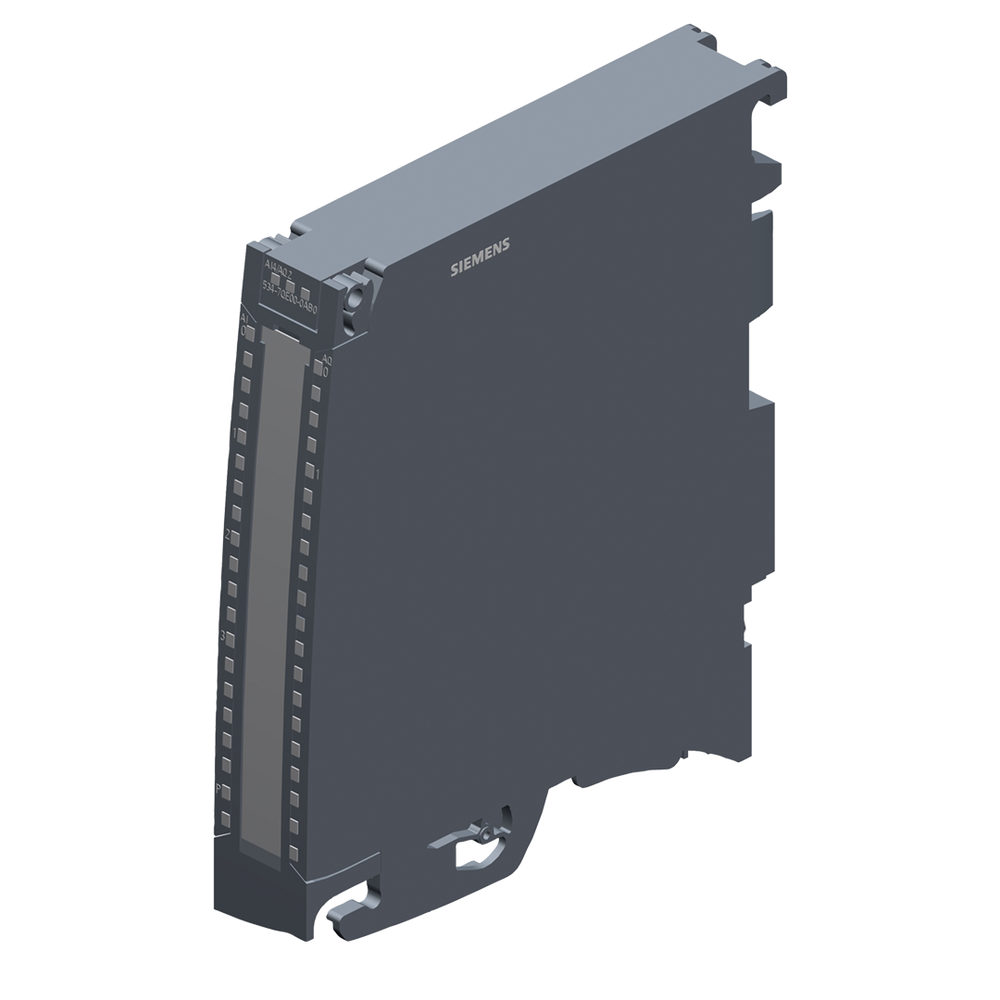

Siemens Simatic S7-1500 Analog output module

SKU / Article No. 6ES7532-5NB00-0AB0
Product Type Control Panel
Product Class PLC analogue I/O-module
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available

Product Description

SIMATIC S7-1500, analog output module AQ 2x U/I ST, 16-bit resolution accuracy 0.3%. 2 channels in groups of 2, diagnostics; substitute value; the module supports the safety-oriented shutdown of load groups up to SILCL1 according to EN 62061:2005 + A2:2015, and Category 2 / PL c according to EN ISO 13849-1:2015. delivery including front connector push-in, infeed element, shield bracket and shield terminal.

Technical Specifications

Compliance/StandardsIEC 62061
Part Width (mm)15,40mm
Part Height (mm)25,60mm
Part Depth (mm)3,40mm
Weight (g)0,374 Kg
descriptionSIMATIC S7-1500, analog output module AQ 2x U/I ST, 16-bit resolution accuracy 0.3%. 2 channels in groups of 2, diagnostics; substitute value; the module supports the safety-oriented shutdown of load groups up to SIL2 according to EN IEC 62061:2021 and Category 2 / PL c according to EN ISO 13849-1:2015. delivery including front connector push-in, infeed element, shielding bracket and shield terminal
country_of_originGermany
View complete specifications on Siemens

Videos & Media

Product Overview

Overview, features and application examples

Compatible Accessories & Components

Accessories

Siemens U-connector for connection of I/O modules

Siemens U-connector for connection of I/O modules

6ES7590-0AA00-0AA0
