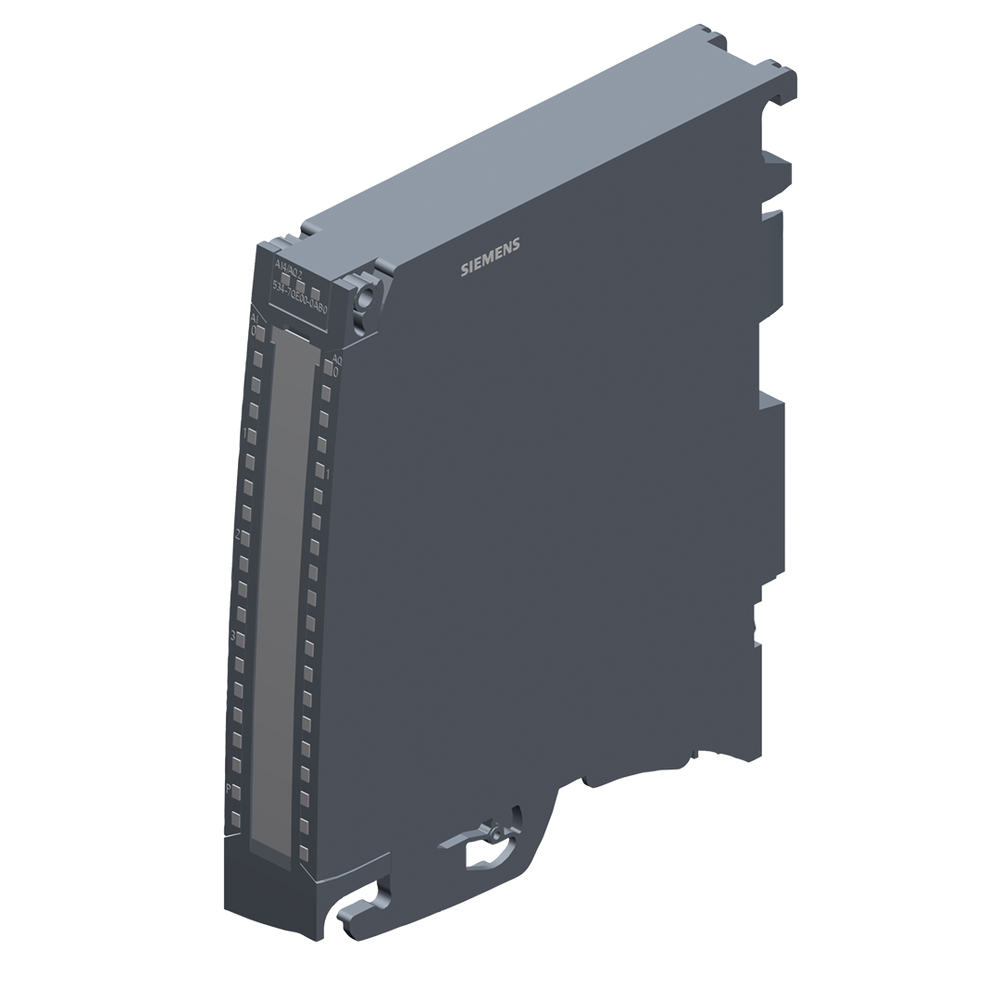

Siemens SIMATIC S7-1500 Analog input/output module Part number 6ES7534-7QE00-0AB0

EAN / Barcode 4047623403326
Product Type Control Panel
Product Class PLC analogue I/O-module
ETIM Class PLC analogue I/O-module
Back Order
💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration♻ EPD🌱 EcoTech Profile

Product Description

SIMATIC S7-1500 Analog input/output module AI 4x U/I/R/RTD/TC ST; 4 channels in groups of 4; Hardware interrupts; Diagnostics AQ 2x U/I ST; 2 channels in groups of 2; Substitute value; Diagnostics Common mode voltage approx. 10 V 16 bit; Accuracy 0.3%; Delivery including push-in front connector, infeed element, shield bracket and shield terminal.

Technical Specifications

Analogue inputs configurableYes
Analogue outputs configurableYes
Depth129 mm
Height147 mm
Input signal, configurableYes
Input, currentYes
Input, resistance thermometerYes
Input, resistorYes
Input, thermocoupleYes
Input, voltageYes
Number of analogue inputs4
Number of analogue outputs2
Output signal configurableYes
Output, currentYes
Output, voltageYes
Resolution of the analogue inputs16 Bit
Resolution of the analogue outputs16 Bit
Width25 mm
Part Width15 mm
Part Height25 mm
Part Depth3 mm
Weight424 g
Country of OriginGermany
