Siemens

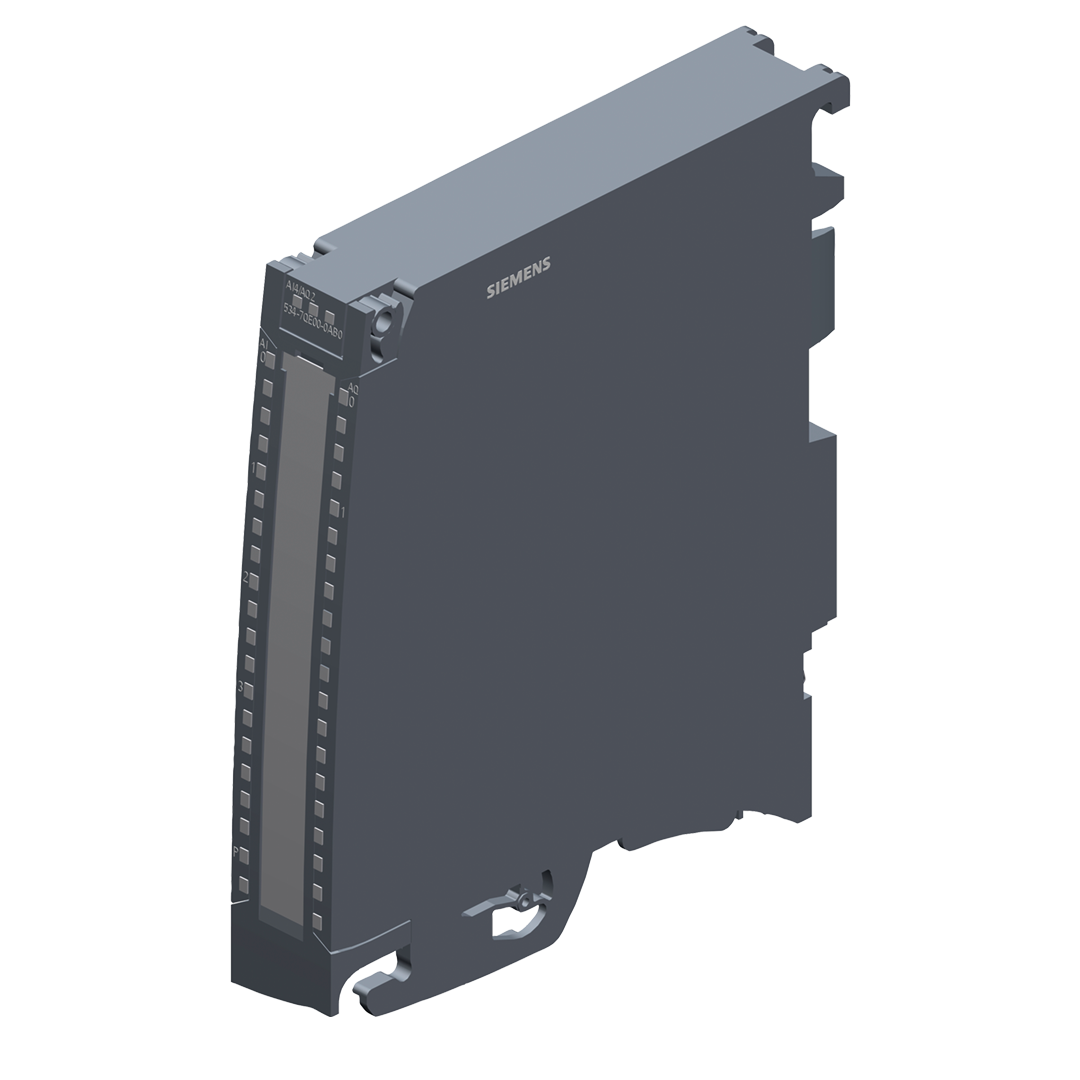

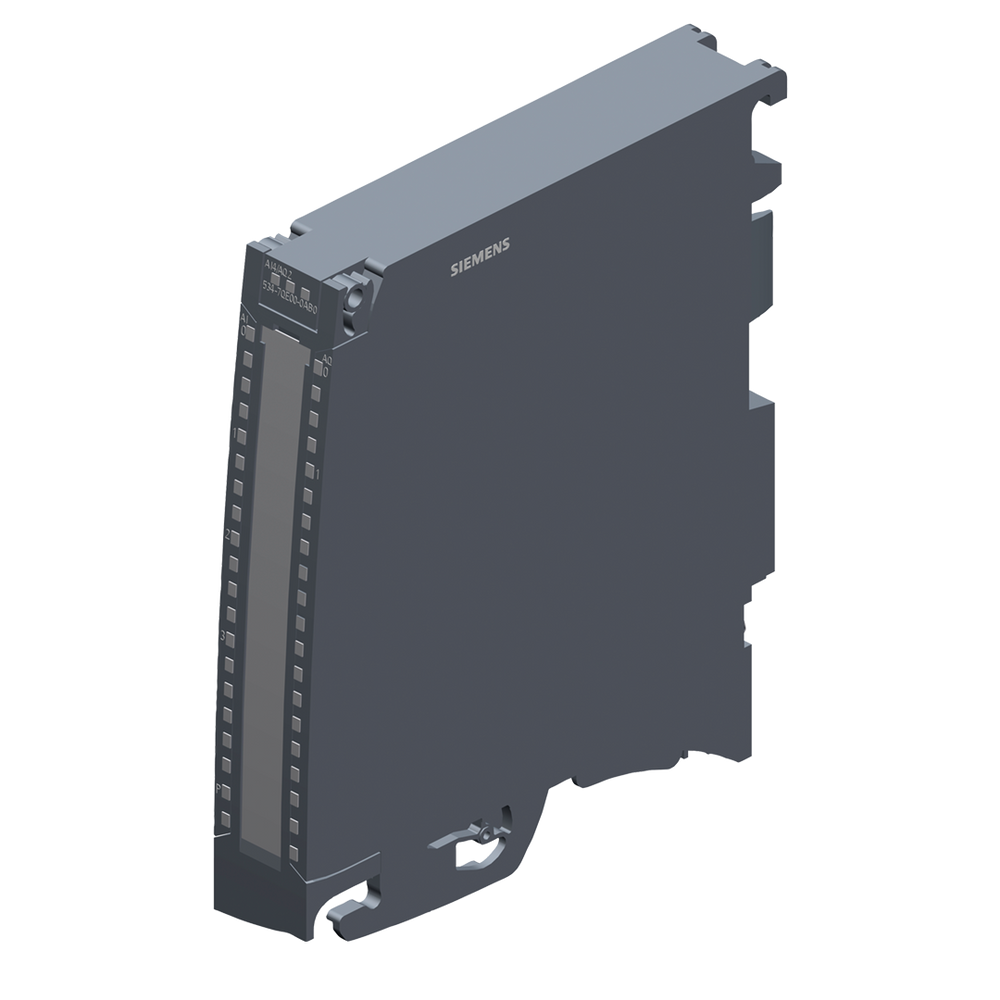

Siemens SIMATIC S7-1500 Analog input module Part number 6ES7531-7QD00-0AB0

EAN / Barcode 4047623403425
Product Type Control Panel
Product Class PLC analogue I/O-module
ETIM Class PLC analogue I/O-module
Back Order
💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration♻ EPD🌱 EcoTech Profile

Product Description

SIMATIC S7-1500 Analog input module AI 4xU/I/RTD/TC ST, 16 bit resolution, Accuracy 0.3%, 4 channels in groups of 4; 2 channels for RTD measurement; Common mode voltage 10 V; Diagnostics; Hardware interrupts; Delivery including push-in front connector, infeed element, shield bracket, and shield terminal

Technical Specifications

Analogue inputs configurableYes
Depth129 mm
Height147 mm
Input signal, configurableYes
Input, currentYes
Input, resistance thermometerYes
Input, resistorYes
Input, thermocoupleYes
Input, voltageYes
Number of analogue inputs4
Resolution of the analogue inputs16 Bit
Width25 mm
Part Width15 mm
Part Height25 mm
Part Depth3 mm
Weight384 g
Country of OriginGermany

Videos & Media

Product Overview

Overview, features and application examples

Compatible Accessories & Components

Accessories

Siemens U-connector for connection of I/O modules

Siemens U-connector for connection of I/O modules

6ES7590-0AA00-0AA0
