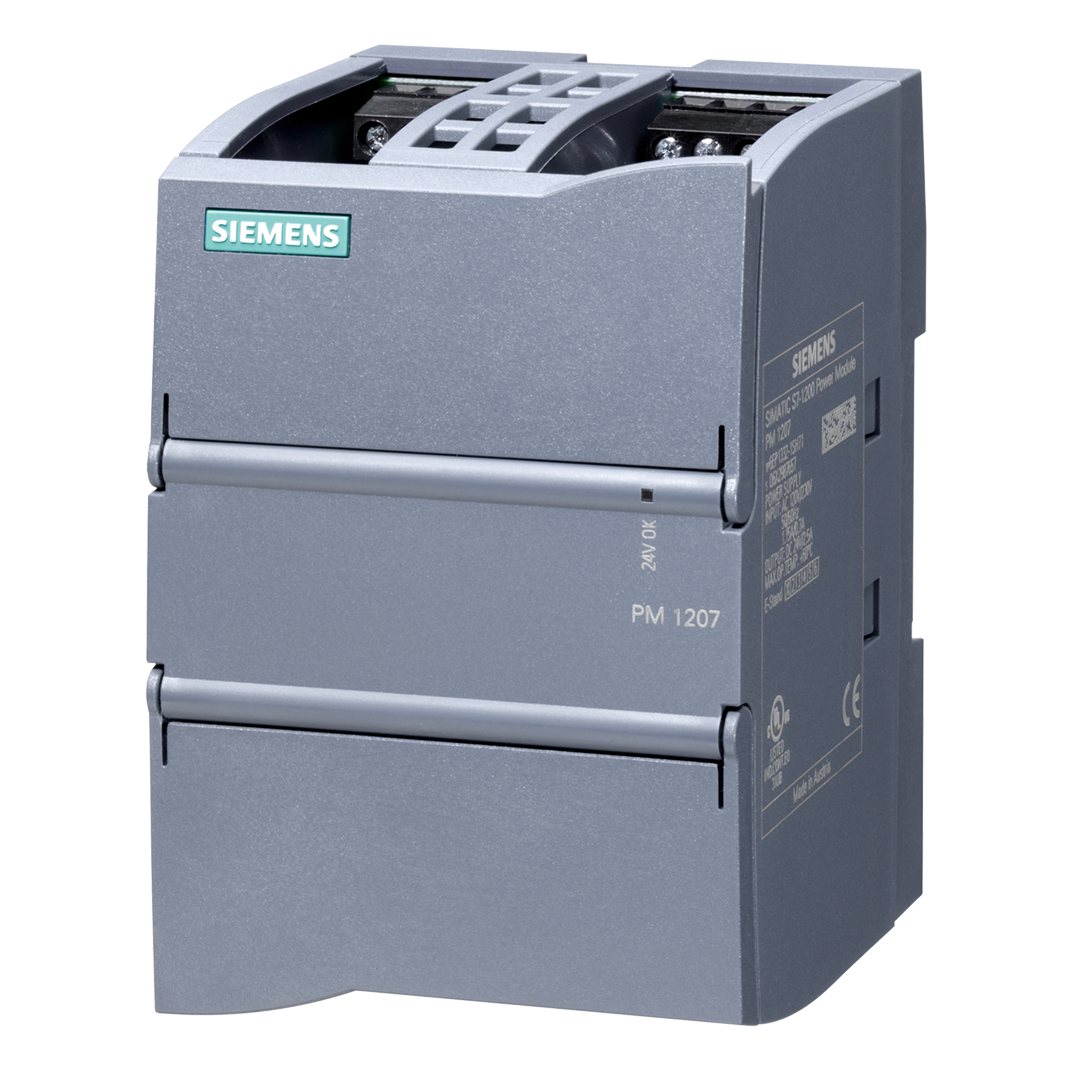

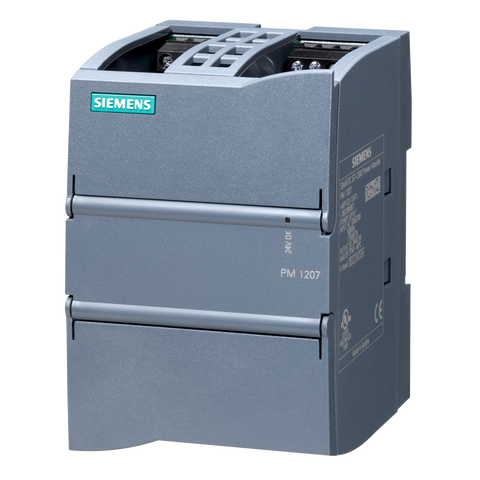

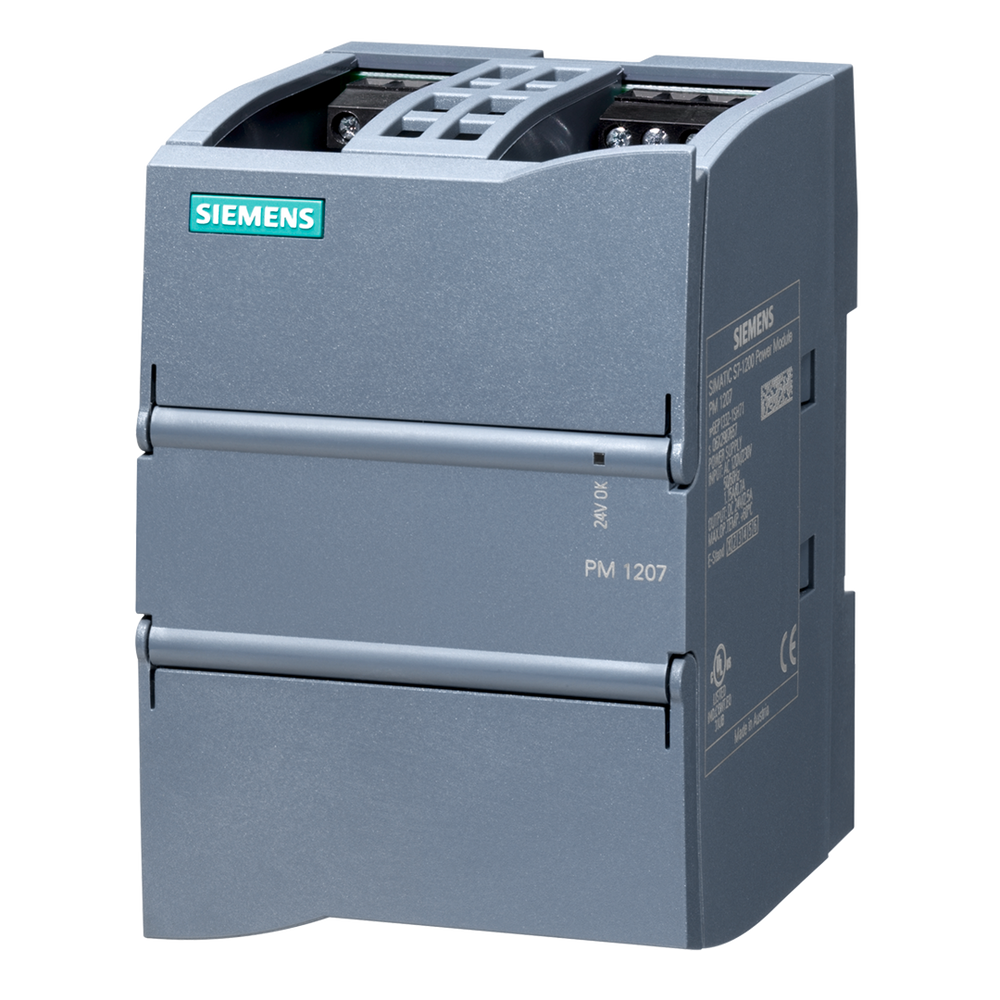

Siemens SIMATIC S7-1200 Power Module PM1207 Stabilized PSU Part number 6EP1 332-1SH71

EAN / Barcode 4025515152446
Product Type Control Panel
Product Class DC-power supply
ETIM Class DC-power supply
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration♻ EPD

Product Description

The POWER MODULE PM1207 - 6EP1332-1SH71 switched mode power supply unit from Siemens is the ideal current supply for your SIMATIC S7-1200 controller. Thanks to the same design the POWER MODULE PM1207 - 6EP1332-1SH71 stabilised power supply cohesively works with S7-1200 controller. The POWER MODULE PM1207 supplies 2.5 A at 24 V DC.

Technical Specifications

1st secondary output voltage24 V
Built-in height140 mm
Built-in width70 mm
Compliance/StandardsEN 60950-1, IEC 60721, EN 60715, UL 60950-1, EN 61000-6, EN 50178, EN 55022, UL 1310
country_of_originRomania
Degree of protection (IP)IP20
Depth75 mm
descriptionSIMATIC S7-1200 Power Module PM1207 Stabilized power supply input: 120/230 V AC, output: DC 24 V/2,5 A
Direct mounting possibleYes
Height100 mm
IP RatingIP20
IP Rating DetailedIP20 EMC standard for emitted interference EN 55022 Class B for mains harmonics limitation not applicable for interference immunity EN 61000
Max. output current 12.5 A
Modular versionYes
Nominal value output current 12.5 A
Nominal value output voltage 124 V
Output voltage stabilizedYes
Part Depth (mm)7,50mm
Part Height (mm)10,50mm
Part Width (mm)8,00mm
Power output60 W
Rail mounting possibleYes
Rated supply voltage AC 50 Hz230 V
Rated supply voltage AC 60 Hz120 V
Short-circuit-proofYes
StabilizedYes
Type of electric connectionScrew connection
Voltage type (supply voltage)AC
Wall mounting possibleYes
Weight (g)0,300 Kg
Width70 mm
