| Compliance/Standards | IEC 61557-12, IEC 61010-2 |
| Part Width (mm) | 8,80mm |
| Part Height (mm) | 10,50mm |
| Part Depth (mm) | 5,40mm |
| Weight (g) | 0,183 Kg |

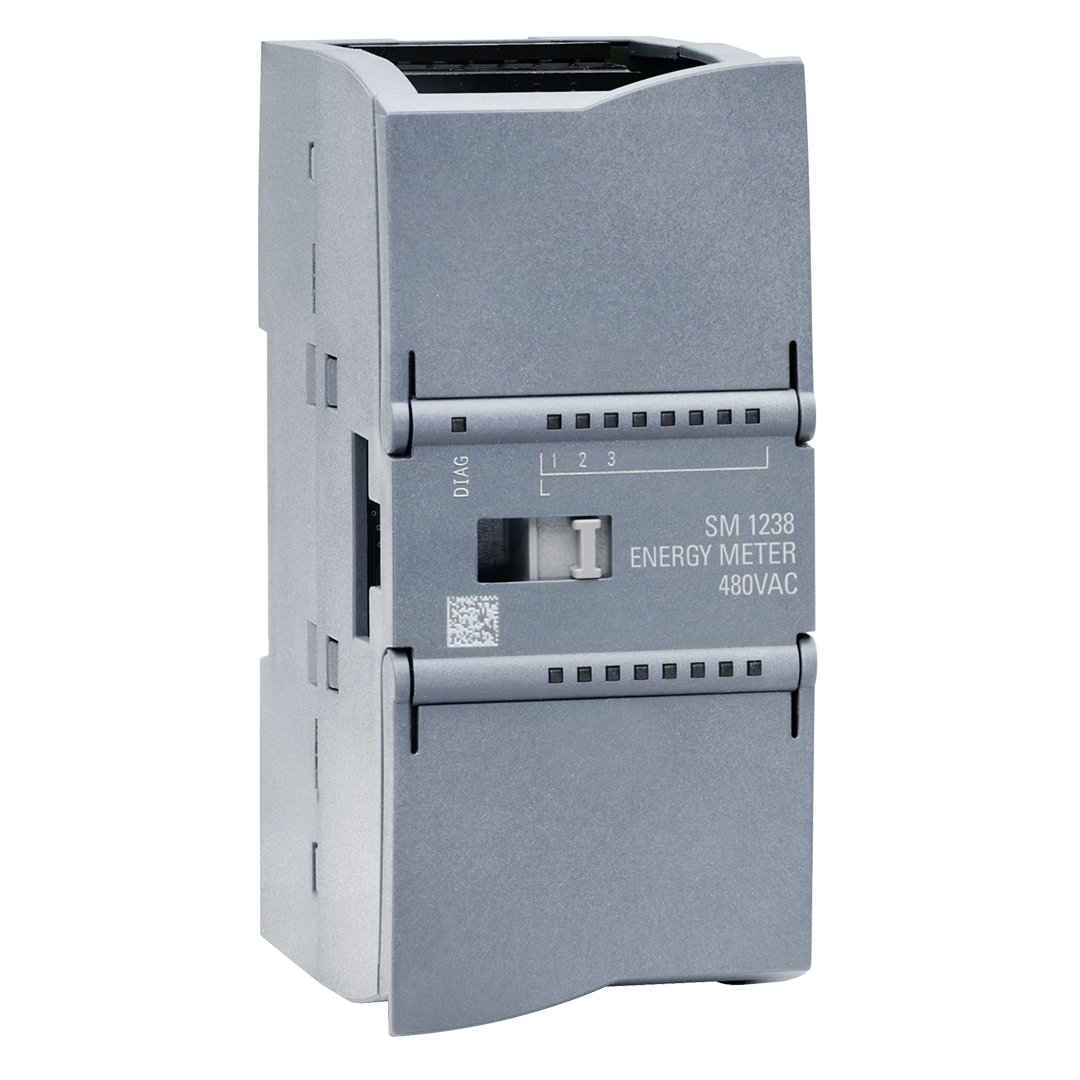

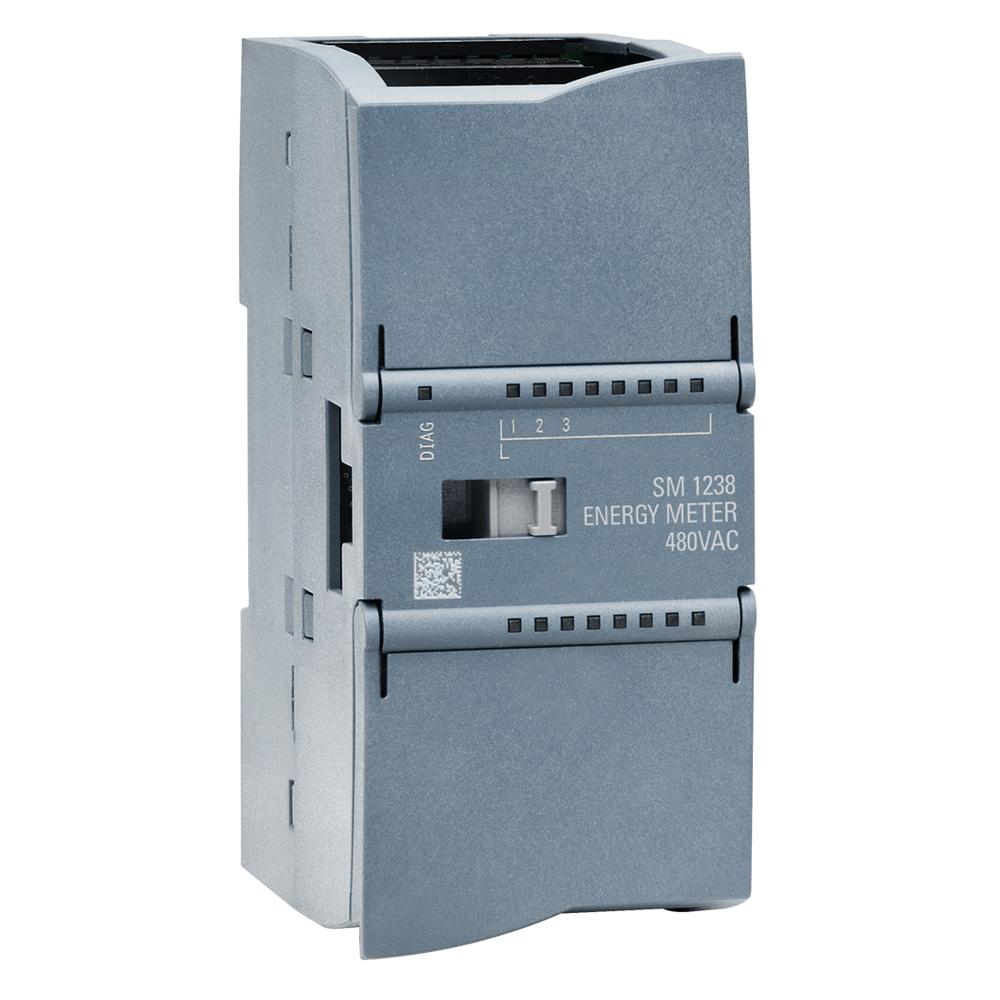

| description | SIMATIC S7-1200, Analog input, SM 1238 Energy Meter 480 V AC, power measurement module for data acquisition in 1- and 3-phase supply systems (TN, TT) up to 480 V AC; Current range: 1 A, 5A; acquisition of voltage, current, phase angles, power, energy values, frequencies; Channel diagnostics |
| country_of_origin | China |
