Siemens SIMATIC S7-1200, Digital I/O SB 1223, 24 V DC - Rubicon Partner Portal
📄 Datasheet
Siemens

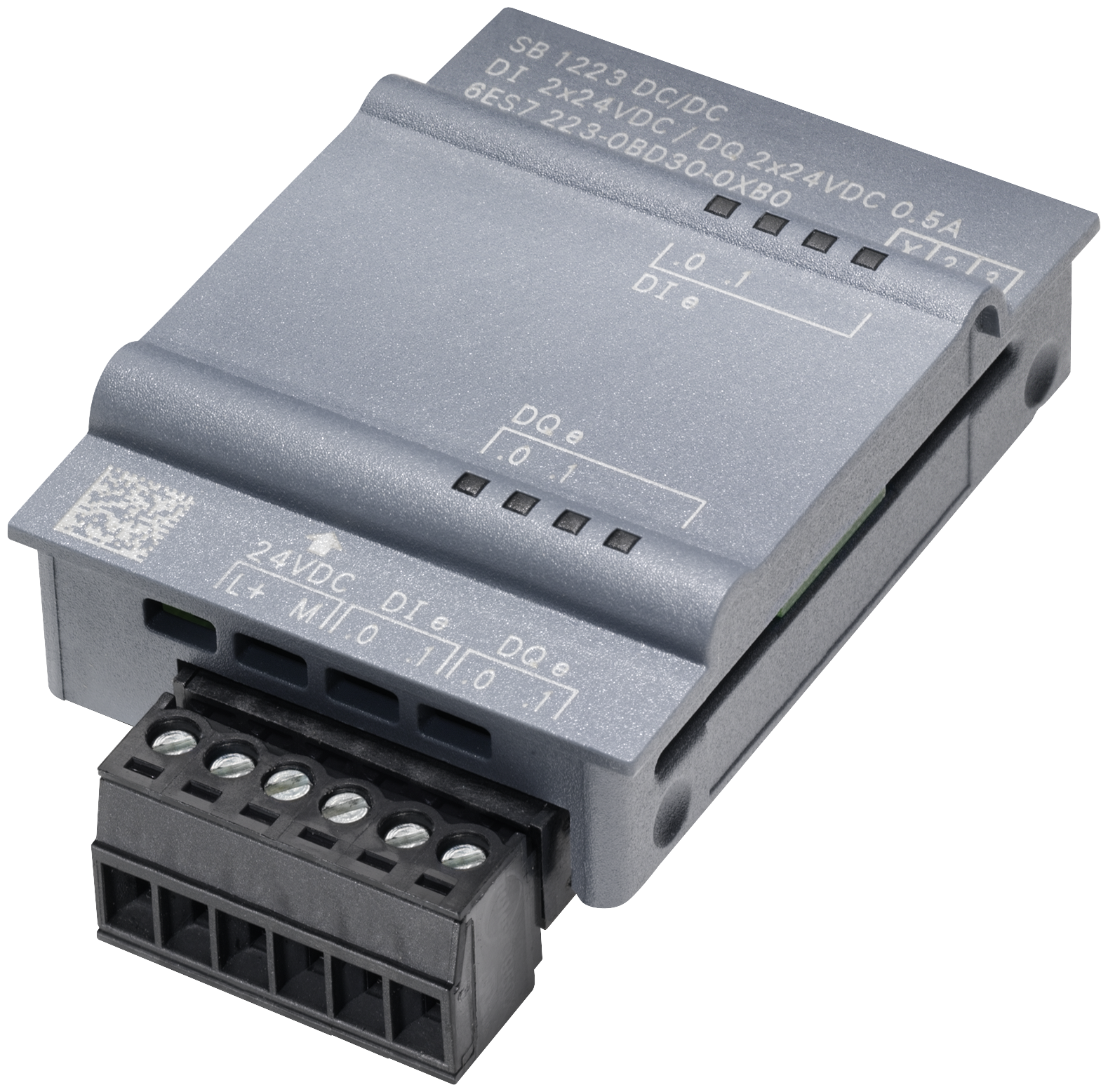

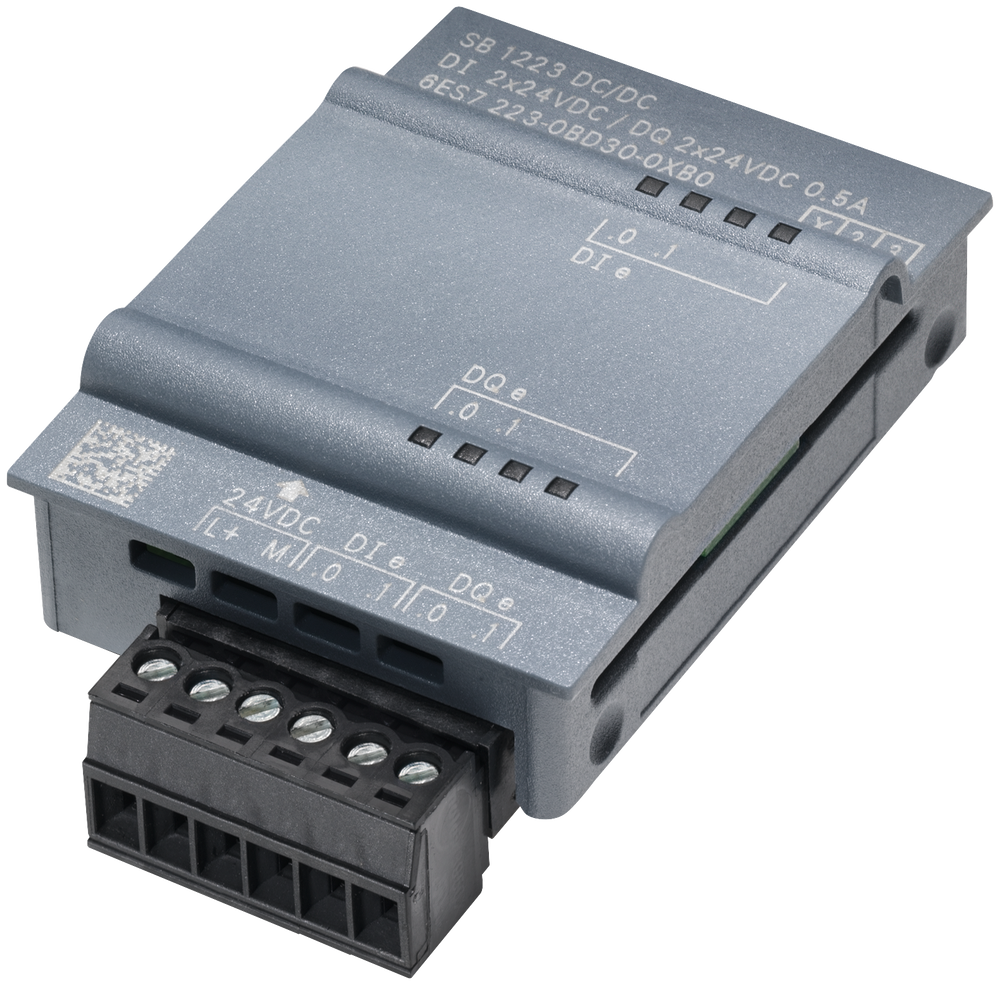

Siemens SIMATIC S7-1200, Digital I/O SB 1223, 24 V DC Part number 6ES7223-3BD30-0XB0

EAN / Barcode 6940408100800
Product Type Control Panel
Product Class PLC digital I/O-module
ETIM Class PLC digital I/O-module
Back Order
💬 Ask an Expert - Technical Support Available

Product Description

The SIMATIC S7-1200 Signal Board SB 1232 - 6ES7223-3BD30-0XB0 from Siemens offers a cost-effective expansion of your Siemens S7-1200, with Digital I/O SB 1223, 2 DI/2 DQ, 24 V DC 200 kHz. The signal board SB 1232 is simply plugged into the front of the CPU.

Technical Specifications

Compliance/StandardsIEC 60068-2
country_of_originChina
Depth21 mm
descriptionSIMATIC S7-1200, Digital I/O SB 1223, 2 DI/2 DQ, 24 V DC 200 kHz
Digital inputs configurableYes
Digital outputs configurableYes
Height62 mm
Input current at signal 17 mA
Number of digital inputs2
Number of digital outputs2
Output current0.1 A
Part Depth (mm)2,70mm
Part Height (mm)7,80mm
Part Width (mm)4,70mm
Permitted voltage at input28.8 V
Permitted voltage at output20.4 V
Type of digital outputTransistor
Type of output voltageDC
Type of voltage (input voltage)DC
Voltage type (supply voltage)DC
Weight (g)0,030 Kg
Width38 mm

Videos & Media

Product Overview

Overview, features and application examples
