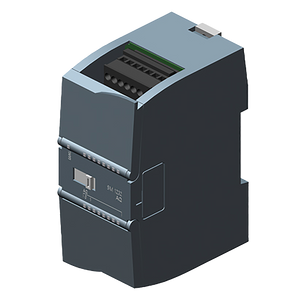

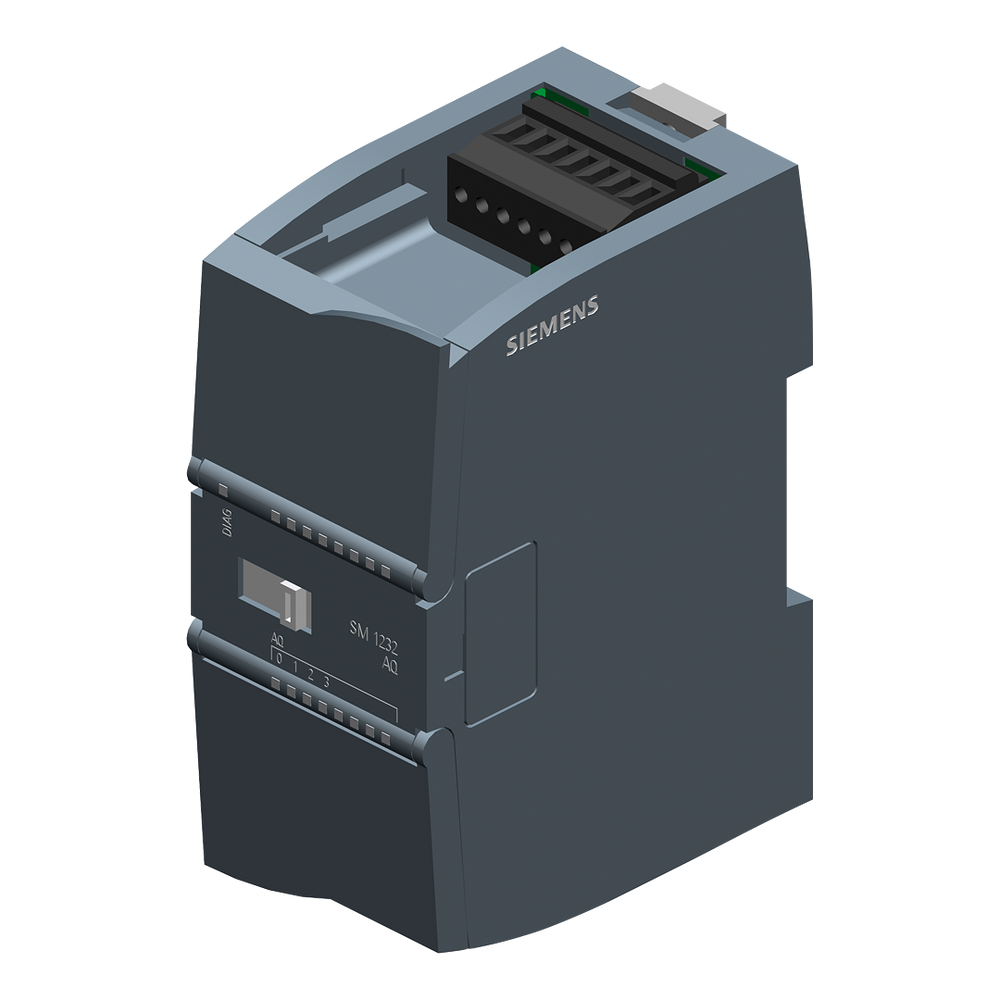

Siemens Simatic S7-1200 Analog output, SM1232, 14-bit

This analog output module is designed for use with the SIMATIC S7-1200 system, providing 4 analog outputs with a resolution of up to 14-bit for voltage and 13-bit for current. It supports output ranges of ±10 V or 0-20 mA and includes diagnostic features such as wire-break and short-circuit monitoring,...
Vendor: Siemens
SKU: 6ES7232-4HD32-0XB0
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x
This analog output module is designed for use with the SIMATIC S7-1200 system, providing 4 analog outputs with a resolution of up to 14-bit for voltage and 13-bit for current. It supports output ranges of ±10 V or 0-20 mA and includes diagnostic features such as wire-break and short-circuit monitoring, ensuring reliable performance in industrial automation applications.
Specifications
Specifications
x
IP Rating / DetailedIP20
Compliance/CertificationsCE / CSA / UL / cULus / FM / RCM / KC / Marine approval
Temperature: Operating-20°C to 60°C
Part Depth (mm)75mm
Part Width (mm)45mm
Part Height (mm)100mm
Weight (g)180g
Supply Voltage24 VDC
Voltage Output-10 to +10 V
Current Consumption45 mA
Documents
Documents
x
Download Datasheet
