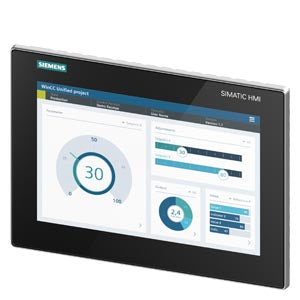

Siemens SIMATIC MTP1200 Unified comfort HMI panel, 12.1in, TFT, 1280x800pixels Part number 6AV2128-3MB06-0AX1

Product Overview

The Siemens SIMATIC HMI MTP1200 (SKU: 6AV2128-3MB06-0AX1) is a 12.1-inch widescreen (1280 × 800) TFT touch-panel within the Unified Comfort series, offering 16 million colours and a PROFINET interface. It is configurable from WinCC Unified Comfort V16 and higher, and is engineered for machine-level human-machine interface tasks in demanding automation environments.

Key Features

• 12.1" widescreen TFT display (1280 × 800) with 16 777 216 colours
• Multi-touch operation capability
• 24 V DC supply (permitted range 19.2 … 28.8 V) with typical current consumption of 0.6 A and max 1.3 A
• Backlight dimmable from 5% to 100%; MTBF of backlighting approx. 50,000 h
• Vertical or landscape mounting, maximum inclination 35° without external ventilation
• PROFINET interface included for industrial Ethernet connectivity

Technical Specifications

• Product Series: SIMATIC HMI MTP1200 Unified Comfort
• Article Number: 6AV2128-3MB06-0AX1
• Display Size: 12.1" diagonal (261.1 mm width × 163.2 mm height)
• Resolution: 1280 × 800 pixels
• Colours: 16,777,216
• Supply Voltage: 24 V DC (19.2 … 28.8 V)
• Typical Current Consumption: 0.6 A
• Maximum Current Consumption: 1.3 A
• Inrush (I²t): 0.5 A²·s
• Backlight MTBF (25 °C): ~50,000 hours
• Protection Class (Front): IP65 (when panel mounted) / Rear IP20
• Net Weight: ~3.484 kg

Compliance & Certifications

• ROHS-conformant as of 14.01.2022
• Manufactured in Germany (indicated country of origin)
• Designed according to Siemens industrial HMI standards for automation environments

Applications

Well-suited for machine-side operator panels, compact control systems, and production-line visualization tasks. The MTP1200 offers high-colour resolution, multi-touch capability, and PROFINET connectivity, making it ideal for packaging machines, material-handling systems, and manufacturing equipment requiring fast, intuitive operator interaction and seamless integration with automation controllers.
