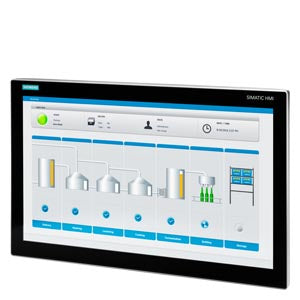

Siemens Simatic IFP1500 V2 Pro Multi-touch display, 15"

Product Overview

The SIMATIC IFP1500 V2 PRO is a professional 15-inch industrial flat panel display designed for demanding industrial environments. This multi-touch display features Full HD resolution, HDBaseT technology for extended distance installation up to 100 meters, and comes with a professional support arm for flexible mounting. Built for 24V DC operation with robust construction, it delivers reliable visualization solutions for manufacturing, process control, and industrial automation applications.

Key Features

• 15-Inch Multi-Touch Display: High-resolution 1920x1080 pixel TFT display with responsive multi-touch capability
• HDBaseT Technology: Can be placed up to 100 meters away from the source via HDBaseT transmission
• PRO Variant Support Arm: Includes professional support arm for flexible positioning and mounting
• Industrial Grade Design: IP65 front protection rating for harsh industrial environments
• 24V DC Operation: Standard industrial power supply with wide voltage tolerance (19.2-28.8V DC)
• Multiple Connectivity: DisplayPort interface with rear-side USB connections for versatile integration

Technical Specifications

• Display Size: 15.6 inches diagonal (396 x 255 mm active area)
• Resolution: 1920 x 1080 pixels (Full HD, 16:9 aspect ratio)
• Display Technology: TFT LCD with LED backlighting
• Touch Technology: Capacitive multi-touch with high precision
• Brightness: 400 cd/m² for excellent visibility
• Contrast Ratio: 1000:1 for sharp image quality
• Colors: 16.7 million colors for rich color reproduction
• Supply Voltage: 24V DC (operating range: 19.2-28.8V DC)
• Power Consumption: Optimized for industrial efficiency
• Operating Temperature: 0°C to +45°C (extended industrial range)
• Protection Rating: IP65 front side for dust and water protection
• Net Weight: 7.740 kg (complete with support arm)
• Country of Origin: Germany
• EAN: 4047618110826
• UPC: 195125409149

Connectivity & Interfaces

• Video Input: DisplayPort interface for high-quality digital video transmission
• USB Connections: Rear-side USB ports for peripheral device connectivity
• HDBaseT Extension: Up to 100 meters distance capability using HDBaseT technology
• Cable Management: Professional cable routing through support arm
• Power Connection: 24V DC industrial power connector with secure connection

Multi-Touch Capabilities

• Touch Points: Multiple simultaneous touch point recognition
• Touch Precision: High-precision capacitive touch sensing
• Touch Response: Fast response time for industrial applications
• Gesture Support: Standard multi-touch gestures including zoom, pan, and scroll
• Durability: Industrial-grade touch surface for extended lifecycle

Mounting & Installation

• Support Arm: Professional-grade support arm with adjustable positioning
• Mounting Options: Flexible mounting configurations for various installations
• Cable Management: Integrated cable routing through support arm structure
• Adjustment Range: Multi-axis positioning for optimal viewing angles
• Installation Environment: Suitable for control rooms, operator stations, and industrial panels

Applications & Use Cases

• Industrial HMI: Human-machine interface for manufacturing equipment and process control
• Control Room Displays: Central monitoring stations for industrial processes
• Operator Workstations: Individual operator positions with extended reach capability
• Machine Control Panels: Integration into machinery control systems
• Process Visualization: Real-time process monitoring and control applications
• SCADA Systems: Integration with supervisory control and data acquisition systems

Environmental Specifications

• Operating Temperature: 0°C to +45°C for reliable industrial operation
• Storage Temperature: Extended range for long-term storage
• Humidity: Industrial-grade humidity resistance
• Vibration Resistance: Designed for industrial vibration environments
• Protection Class: IP65 front protection against dust and water ingress

HDBaseT Technology Benefits

• Extended Distance: Up to 100 meters separation between display and source
• Single Cable Solution: Video, control, and power over single cable infrastructure
• High Quality Transmission: Uncompressed Full HD video with no signal degradation
• Simplified Installation: Reduced cabling complexity for remote installations
• Cost-Effective: Lower installation costs for extended distance applications

System Integration

• SIMATIC Compatibility: Seamless integration with SIMATIC automation systems
• Industrial PC Connection: Direct connection to industrial computers and servers
• Network Integration: Support for industrial network protocols and systems
• Software Compatibility: Compatible with industrial visualization software
• Scalability: Support for multiple display configurations and setups

Compliance & Safety

• RoHS Compliance: Compliant since April 23, 2023
• Industrial Standards: Meets relevant industrial automation standards
• Export Control: AL: N / ECCN: EAR99H
• WEEE Compliance: Subject to WEEE take-back obligations
• REACH Information: Contains lead, silicic acid lead salt, 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one, and lead monoxide in concentrations >0.1% w/w (safe when used as intended)

Professional Features

• Standard Design: Professional industrial appearance for control room environments
• Ergonomic Positioning: Support arm enables optimal viewing angle adjustment
• Maintenance Access: Easy access to connections and components for service
• Longevity: Industrial-grade components for extended operational life
• Quality Assurance: German engineering and manufacturing quality standards
