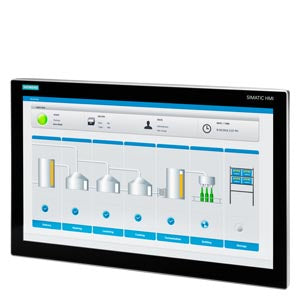

Siemens Simatic IFP1500 V2, 15" multi-touch display, 1920x1080 pixel

Product Overview

SIMATIC IFP1500 V2, 15" multi-touch display (16:9) with 1920x1080 pixel resolution, built-in unit, for 24 V DC, display port/DVI interface, including DP/USB cable 1.8 m, on the rear USB, neutral design

Key Features

• High-Resolution Display: 15" widescreen multi-touch display with Full HD 1920x1080 pixel resolution in 16:9 aspect ratio
• Multi-Touch Technology: Capacitive multi-touch screen supporting gesture control and multi-finger operation, even when wearing thin work gloves
• Flexible Connectivity: DisplayPort/DVI interface with included 1.8m DP/USB cable for connection to industrial PCs up to 30 meters away
• Rugged Industrial Design: IP65-rated front protection for dust and water resistance, suitable for harsh industrial environments
• Easy Installation: Built-in unit design for seamless integration into control cabinets and machine interfaces

Technical Specifications Article Number: 6AV7863-5MA00-2NA0 Display Technology:

• Screen Size: 15 inches (diagonal)
• Aspect Ratio: 16:9 widescreen
• Resolution: 1920 x 1080 pixels (Full HD)
• Display Type: TFT LCD with LED backlighting
• Colors: 16.7 million colors
• Touch Technology: Capacitive multi-touch

Power Requirements:

• Supply Voltage: 24 V DC
• Operating Temperature: 0°C to +50°C
• Storage Temperature: -20°C to +70°C

Connectivity & Interfaces:

• Video Input: DisplayPort/DVI interface
• USB: Rear-mounted USB 2.0 ports
• Cable: DP/USB cable 1.8m included

Physical Properties:

• Net Weight: 4.640 kg
• Packaging Dimensions: 51.00 x 62.00 x 23.00 cm
• Front Dimensions: 398mm (W) x 257mm (H)
• Built-in Depth: 63.4mm
• Protection Rating: IP65 (front)

Product Identification:

• EAN: 4047618108342
• UPC: 195125104396
• Country of Origin: Germany

Design & Installation Neutral Design: Features a neutral aesthetic that integrates seamlessly into various industrial environments and control panel designs Flexible Mounting: Suitable for panel mounting and control cabinet integration with VESA mounting compatibility Cable Management: Built-in strain relief and cable management features for secure installation

Applications The SIMATIC IFP1500 V2 is ideal for:

• Industrial automation and process control
• Machine monitoring and visualization
• HMI (Human Machine Interface) applications
• Manufacturing control panels
• Real-time data display and trend monitoring
• Desktop or built-in operator terminals

Product Status & Compliance Compliance & Certifications:

• RoHS Compliance: Since 23.04.23
• Export Control: AL: N / ECCN: EAR99H
• Product Class: A - Standard product which is a stock item

Included Components

• SIMATIC IFP1500 V2 Industrial Flat Panel
• DisplayPort/USB cable (1.8m)
• Mounting hardware
• Documentation
