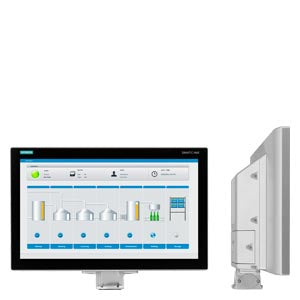

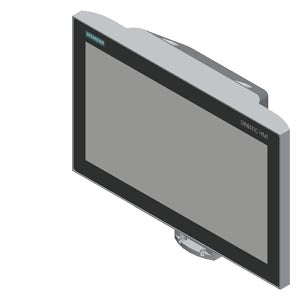

Siemens Simatic HMI TP1500 Comfort pro for supporting foot

Product Overview

Professional SIMATIC HMI Comfort Pro Panel designed for supporting foot mounting with expandable bottom flange configuration. This industrial-grade human-machine interface features a large 15" widescreen TFT display with touch operation and enhanced memory capacity, providing superior performance for demanding automation monitoring and control applications.

Key Features

• Display Technology: 15" widescreen TFT display with 16 million colors
• Operation Method: Touch operation for intuitive user interaction
• Mounting Configuration: Supporting foot compatible (expandable, flange at bottom)
• Connectivity: PROFINET interface and MPI/PROFIBUS DP interface
• Memory: 24 MB configuration memory for extensive application storage
• Operating System: WEC 2013 for robust industrial operation
• Configuration: Compatible with WinCC Comfort V14 SP1 with HSP
• Panel Type: SIMATIC HMI TP1500 Comfort Pro
• Design: Professional Pro series for enhanced durability

Technical Specifications

• Display Size: 15" widescreen format
• Color Depth: 16 million colors
• Memory Capacity: 24 MB configuration memory
• Communication Interfaces: PROFINET, MPI/PROFIBUS DP
• Mounting Type: Supporting foot (expandable, flange at bottom)
• Net Weight: 7.261 kg
• Packaging Dimensions: 30.40 x 46.90 x 19.70 cm
• Quantity Unit: 1 Piece
• EAN: 4047623408772
• UPC: 804766495762
• Country of Origin: Germany

Compliance

• RoHS Compliance: Compliant since August 4, 2017
• Export Control: AL: N / ECCN: 9N9999
• WEEE Take-Back Obligation: Yes

Environmental & Safety Information

This product meets industrial environmental standards and contains several substances listed under REACH Article 33 regulations in concentrations higher than 0.1% by weight, including Lead, Silicic acid lead salt, 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one, and Lead monoxide. When used as intended, including proper disposal, these substances do not pose risk to users.

Configuration & Software

Engineered for seamless integration with Siemens automation systems, this HMI panel is configurable using WinCC Comfort V14 SP1 with HSP, providing advanced tools for creating comprehensive operator interfaces and sophisticated system monitoring solutions. The Pro series design ensures enhanced durability for demanding industrial environments.

Download existing graphical data for this product:

For technical documentation and detailed specifications, please refer to the official Siemens support resources:

• Technical Data Sheet
• Product Information Page
