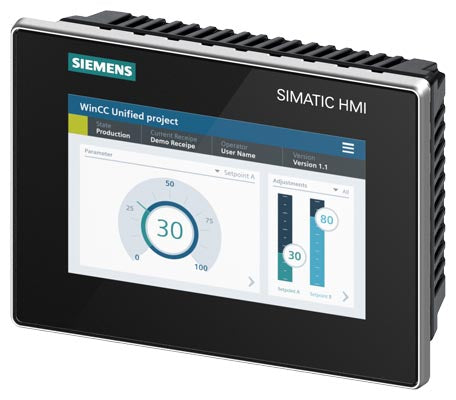

Siemens Simatic HMI MTP700 Unified comfort panel, touch, 7" Part number 6AV2128-3GB06-0AX1

Product Overview

The Siemens SIMATIC HMI Unified Comfort Panel 6AV2128-3GB06-0AX1 is a 7-inch widescreen TFT touch display designed for modern operator control and monitoring of machines and plants. It features a PROFINET interface with dual-port switch, multi-touch operation, and 16 million color display for advanced visualization and intuitive user interaction. Engineered for use with WinCC Unified Comfort V16 and higher.

Key Features:

• Display: 7" widescreen TFT display with 800 × 480 resolution and 16 million colors
• Touch Technology: Capacitive multi-touch operation for intuitive control
• Interface: Dual-port PROFINET for industrial Ethernet connectivity
• Power Supply: 24 V DC (19.2 – 28.8 V) input range
• Front Protection: IP65 rated for harsh industrial environments
• Operating System: SIMATIC WinCC Unified Runtime
• Configuration: Compatible with TIA Portal V16 or higher

Technical Specifications:

• Product Series: SIMATIC HMI Unified Comfort Panels
• Display Size: 7 inches (Widescreen)
• Resolution: 800 × 480 pixels (WVGA)
• Colors: 16 million
• Supply Voltage: 24 V DC (19.2 – 28.8 V)
• Current Consumption: Approx. 0.45 A (typical)
• Interfaces: 2 × Ethernet (PROFINET), 4 × USB 3.1, RS422/485, 2 × SD card slots
• Mounting: Panel mounting with rear clamps
• Dimensions: 198 mm × 142 mm × 63.6 mm (W × H × D)
• Weight: Approx. 1.4 kg
• Protection Class: Front IP65 / Rear IP20
• Operating Temperature: 0 °C to +50 °C
• Country of Origin: Germany

Product Benefits:

• Modern Visualization: High-resolution display with multi-touch for intuitive operation
• Seamless Integration: Fully compatible with TIA Portal and SIMATIC controllers
• Flexible Networking: Dual PROFINET ports support daisy-chaining and network redundancy
• Robust Construction: IP65 front protection for reliable operation in demanding environments
• Enhanced Usability: Supports browser, PDF viewer, and multimedia content directly on the panel
• Unified Platform: Part of the SIMATIC Unified Comfort family for consistent performance and design

Applications:

Ideal for operator control and monitoring in automation systems, machine building, and process industries.
Commonly used in food and beverage, packaging, material handling, and manufacturing environments.
