Siemens Simatic HMI MTP1900 Unified comfort panel, profinet, 18.5" Part number 6AV2128-3UB06-0AX1

Product Overview

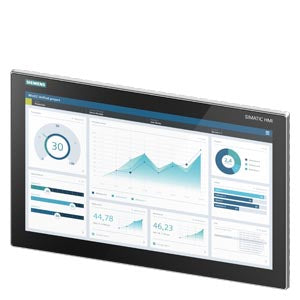

The Siemens SIMATIC HMI Unified Comfort Panel MTP1900 (SKU: 6AV2128-3UB06-0AX1) is a 19" widescreen touch panel designed for advanced operator control and monitoring. It features a high-resolution display with 16 million colors, capacitive multi-touch operation, and PROFINET connectivity. The panel combines performance, durability, and intuitive handling for demanding industrial applications.

Key Features

• 19" widescreen TFT display (1920 × 1080 pixels, 16 million colors)
• Capacitive multi-touch operation
• PROFINET interface for seamless industrial communication
• Mounting possible in portrait or landscape format
• Front protection class: IP65; rear: IP20
• Industrial-grade design for continuous operation

Technical Specifications

• Product Type: SIMATIC HMI Unified Comfort Panel MTP1900
• Article Number: 6AV2128-3UB06-0AX1
• Display Size: 18.5" / 19" diagonal (widescreen)
• Resolution: 1920 × 1080 pixels (Full HD)
• Display Area: 408.96 × 230.04 mm
• Supply Voltage: 24 V DC (19.2 – 28.8 V)
• Rated Current Consumption: Approx. 1.2 A
• Power Consumption (Typical): Approx. 28.8 W
• Operating Temperature: 0 °C to +45 °C
• Degree of Protection: IP65 (front), IP20 (rear)
• Dimensions (W × H × D): 480 × 309 × 60 mm
• Weight (approx.): 5.5 kg

Compliance & Certifications

• Complies with IEC industrial control standards
• CE, UL, and RCM certified
• RoHS and REACH compliant
• Developed and manufactured by Siemens AG, Germany

Applications

The SIMATIC HMI Unified Comfort Panel MTP1900 is ideal for large-scale machine interfaces and visualization systems in industrial automation. Its high-performance processor and capacitive multi-touch screen make it perfect for modern production environments requiring intuitive, flexible, and long-lasting operator interfaces.
