Siemens SIMATIC HMI MTP1000, Unified Basic Panel, touch operation, 10" widescreen
View on Siemens 📄 Datasheet
Siemens

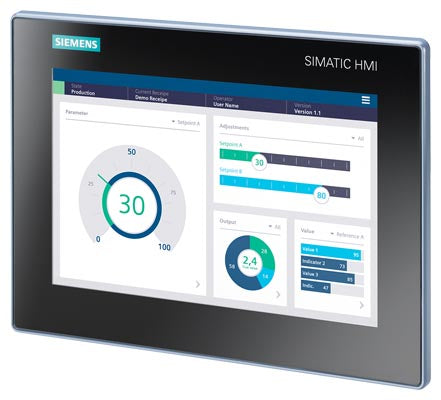

Siemens SIMATIC HMI MTP1000, Unified Basic Panel, touch operation, 10" widescreen Part number 6AV2123-3KB32-0AW0

EAN / Barcode 4034106035204
Product Type Control Panel
Product Class Graphic panel
ETIM Class Graphic panel
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration♻ EPD

Product Description

Product Overview

The Siemens SIMATIC HMI Unified Basic Panel MTP1000 (SKU: 6AV2123-3KB32-0AW0) is a 10.1" widescreen touch panel designed for modern operator control and monitoring in industrial environments. Featuring a high-resolution TFT display with 16 million colors and PROFINET connectivity, it combines intuitive operation with robust performance. The panel is part of the Unified Basic series and can be configured with WinCC Unified Basic V18 or higher.

Key Features

  • 10.1" TFT widescreen display (1280 × 800 pixels, 16 million colors)
  • Capacitive multi-touch operation
  • PROFINET interface for seamless integration in industrial networks
  • Mounting possible in both portrait and landscape orientation
  • Front protection class: IP65; rear: IP20
  • Energy-efficient 24 V DC operation

Technical Specifications

  • Product Type: SIMATIC HMI Unified Basic Panel MTP1000
  • Article Number: 6AV2123-3KB32-0AW0
  • Display: 10.1" TFT, 1280 × 800 pixels, 16 million colors
  • Operation: Multi-touch (capacitive)
  • Communication: 1 × PROFINET
  • Supply Voltage: 24 V DC (19.2 – 28.8 V)
  • Current Consumption: Approx. 0.28 A
  • Power Input: Approx. 11 W
  • Dimensions (W × H × D): 280 × 205 × 55 mm
  • Weight (approx.): 1.55 kg
  • Degree of Protection: IP65 (front), IP20 (rear)
  • Operating Temperature: 0 °C to +50 °C
  • Storage Temperature: −20 °C to +60 °C

Compliance & Certifications

  • Complies with IEC and EN industrial control standards
  • Meets Siemens SIMATIC HMI Unified system quality and safety requirements
  • CE, UKCA, cULus, and RCM certified
  • RoHS and REACH compliant

Applications

The SIMATIC HMI Unified Basic Panel MTP1000 is ideal for machine-level operation, visualization, and control in industrial automation systems. Its multi-touch interface, high-resolution display, and robust design make it suitable for production lines, assembly systems, and automated equipment requiring intuitive and reliable operator interaction.

Technical Specifications

Built-in depth55 mm
Colour displayYes
Degree of protection (IP), front sideIP65
Height of the front205 mm
Number of colours of the display16777216
Number of HW-interfaces industrial Ethernet1
Number of HW-interfaces USB2
Number of online languages32
Number of pixels, horizontal1280
Number of pixels, vertical800
Operating temperature0 °C
Screen diagonal10.1 inch
Supply voltage DC28.8 V
Supporting protocol for EtherNet/IPYes
Supporting protocol for ModbusYes
Supporting protocol for TCP/IPYes
Type of displayTFT
Voltage type (supply voltage)DC
Width of the front280 mm
With alpha numeric keyboardYes
With message indicationYes
With message system (incl. buffer and confirmation)Yes
With numeric keyboardYes
With recipesYes
View complete specifications on Siemens
