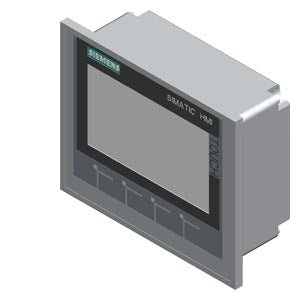

Siemens Simatic HMI KTP400 Comfort panel, key/touch operation
View on Siemens 📄 Datasheet
Siemens

Siemens Simatic HMI KTP400 Comfort panel, key/touch operation Part number 6AV2124-2DC01-0AX0

EAN / Barcode 4025515078975
Product Type Control Panel
Product Class Graphic panel
ETIM Class Graphic panel
In Stock
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration

Product Description

Product Overview

Advanced SIMATIC HMI Comfort Panel featuring key and touch operation capabilities. This industrial-grade human-machine interface combines a high-resolution 4" widescreen TFT display with comprehensive connectivity options, delivering reliable performance for demanding automation applications.

Key Features

  • Display Technology: 4" widescreen TFT display with 16 million colors
  • Operation Methods: Dual key/touch operation for versatile user interaction
  • Connectivity: PROFINET interface and MPI/PROFIBUS DP interface
  • Memory: 4 MB configuration memory for application storage
  • Operating System: Windows CE 6.0 for stable industrial operation
  • Configuration: Compatible with WinCC Comfort V11 software
  • Panel Type: SIMATIC HMI KTP400 Comfort Panel

Technical Specifications

  • Display Size: 4" widescreen format
  • Color Depth: 16 million colors
  • Memory Capacity: 4 MB configuration memory
  • Communication Interfaces: PROFINET, MPI/PROFIBUS DP
  • Net Weight: 0.670 kg
  • Packaging Dimensions: 13.10 x 20.10 x 6.80 cm
  • Quantity Unit: 1 Piece
  • EAN: 4025515078975
  • UPC: 040892694307
  • Country of Origin: Germany

Compliance

  • RoHS Compliance: Compliant since January 31, 2011
  • Export Control: AL: N / ECCN: 9N9999
  • WEEE Take-Back Obligation: Yes

Environmental & Safety Information

This product meets industrial environmental standards and contains several substances listed under REACH Article 33 regulations in concentrations higher than 0.1% by weight, including Lead, Lead monoxide, Silicic acid lead salt, 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol, and Bisphenol A (BPA). When used as intended, including proper disposal, these substances do not pose risk to users.

Configuration & Software

Designed for seamless integration with Siemens automation systems, this HMI panel is configurable using WinCC Comfort V11 software, providing comprehensive tools for creating intuitive operator interfaces and system monitoring solutions.

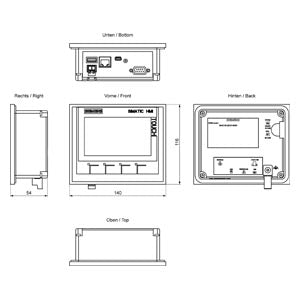

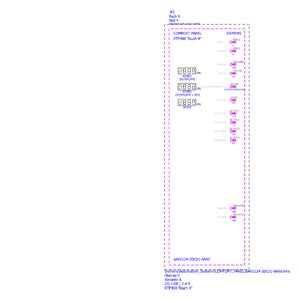

Download existing graphical data for this product:

For technical documentation and detailed specifications, please refer to the official Siemens support resources:

Technical Specifications

Additional software components, loadableYes
Built-in depth48 mm
Colour displayYes
Current Consumption0.13 A
Degree of protection (IP), front sideIP65
Height of the front116 mm
IP RatingIP20 / IP65
Number of buttons with LED4
Number of colours of the display16777216
Number of function buttons, programmable4
Number of HW-interfaces industrial Ethernet1
Number of HW-interfaces RS-4221
Number of HW-interfaces RS-4851
Number of HW-interfaces USB1
Number of interfaces PROFINET1
Number of online languages32
Number of password levels50
Number of pixels, horizontal480
Number of pixels, vertical272
Operating temperature50 °C
Part Depth (mm)48mm
Part Height (mm)116mm
Part Width (mm)140mm
Process default value (input) possibleYes
Process value representation (output) possibleYes
Screen diagonal4.3 inch
Supply Voltage24 VDC
Supply voltage DC28.8 V
Supporting protocol for EtherNet/IPYes
Supporting protocol for ModbusYes
Supporting protocol for other bus systemsYes
Supporting protocol for PROFIBUSYes
Supporting protocol for PROFINET IOYes
Supporting protocol for TCP/IPYes
Temperature: Operating-0 °C to 50 °C
Touch technologyResistive touch
Type of displayTFT
Useful project memory/user memory4000 kByte
Voltage type (supply voltage)DC
Weight (g)600g
Width of the front140 mm
With alpha numeric keyboardYes
With message indicationYes
With message system (incl. buffer and confirmation)Yes
With numeric keyboardYes
With printer outputYes
With recipesYes
