Siemens Simatic ET 200SP Profinet interface module, 2-port
View on Siemens 📄 Datasheet
Siemens

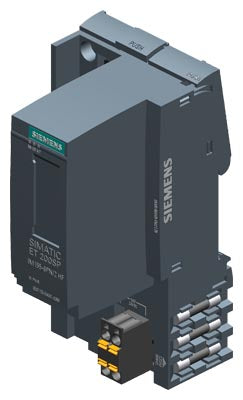

Siemens Simatic ET 200SP Profinet interface module, 2-port Part number 6ES7155-6AU01-0CN0

Product Type Control Panel
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available

Product Description

This interface module supports PROFINET communication and offers isochronous mode for high-speed data transfer. It can handle up to 64 I/O modules and 16 ET 200AL modules and includes features like multi-hot swapping and media redundancy, making it suitable for complex automation systems.

Technical Specifications

Country of OriginGermany
Temperature: Operating-30°C to 60°C (for horizontal installation) / -30°C to 50°C (for vertical installation)
Part Depth (mm)74mm
Part Width (mm)50mm
Part Height (mm)117mm
Weight (g)120g
Packaging size / unit pc(s)
CommunicationRJ45
Supply Voltage24 VDC
Current Consumption700 mA; without load
View complete specifications on Siemens

Videos & Media

Product Overview

Overview, features and application examples
