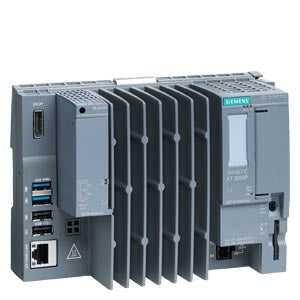

Siemens Simatic ET 200SP Open controller CPU, 8GB Ram

Product Overview

The Siemens 6ES7677-2DB42-0GM0 is an advanced industrial open controller from the SIMATIC ET 200SP family, featuring CPU 1515SP PC2 with integrated HMI capabilities supporting 2048 PowerTags. This compact all-in-one solution combines PC-based software controller functionality with visualization, PC applications, and central I/O in a single device, featuring 8 GB RAM, 128 GB CFast storage with Windows 10 IoT Enterprise LTSC 2019 64-bit, preinstalled S7-1500 Software Controller CPU 1505SP V2x, and WinCC Runtime Advanced V17 for comprehensive industrial automation and visualization applications.

Key Features

• All-in-One Integration: Combines PC-based software controller, visualization, PC applications, and central I/O in single compact device
• High-Performance Processing: 8 GB RAM with Intel-based CPU 1515SP PC2 for demanding industrial applications
• Windows 10 IoT Enterprise: 128 GB CFast with Windows 10 IoT Enterprise LTSC 2019 64-bit preinstalled
• Preinstalled Software: S7-1500 Software Controller CPU 1505SP V2x and WinCC Runtime Advanced V17 ready to use
• 2048 PowerTags License: Extensive HMI visualization capabilities with 2048 PowerTags license included
• Comprehensive Connectivity: Multiple interfaces including PROFINET, Ethernet, USB 3.0/2.0, DisplayPort, and expandable storage

Technical Specifications

• CPU: Intel-based CPU 1515SP PC2 with 8 GB RAM
• Storage: 128 GB CFast with Windows 10 IoT Enterprise LTSC 2019 64-bit
• Software: S7-1500 Software Controller CPU 1505SP V2x, WinCC Runtime Advanced V17
• PowerTags License: 2048 PowerTags for HMI applications
• Interfaces: 1x CFast slot, 1x SD/MMC slot, 1x ET 200SP BusAdapter PROFINET connection, 1x 10/100/1000 Mbps Ethernet, 2x USB 3.0, 2x USB 2.0, 1x DisplayPort
• Dimensions: 160 x 117 x 75 mm (W x H x D)
• Weight: 1.027 kg
• Packaging Dimensions: 14.40 x 18.90 x 9.50 cm
• Country of Origin: Germany
• EAN: 4047623409861
• UPC: 804766918926

Applications Engineered for advanced industrial automation applications including complex manufacturing systems, process visualization and control, machine automation with integrated HMI, distributed control systems, edge computing applications, and industrial IoT implementations requiring combined PLC functionality, PC applications, and sophisticated visualization capabilities in space-constrained environments.

System Integration Benefits

• Space-Efficient Design: Combines multiple functions in single compact device, reducing cabinet space requirements
• Reduced System Complexity: Eliminates need for separate PLC, PC, and HMI components
• Enhanced Performance: Intel-based processing with 8 GB RAM for demanding applications
• Flexible Connectivity: Multiple interface options enable integration with various industrial networks and devices
• Scalable I/O: ET 200SP modular I/O system enables flexible expansion
• Industrial-Grade Reliability: Designed for harsh industrial environments with robust construction

ET 200SP System Integration Part of Siemens' SIMATIC ET 200SP multifunctional I/O system, providing fine scalability and compact control cabinet installation. The system supports numerous communication protocols with high-speed transmission rates, offering direct 2, 3, or 4-wire sensor/actuator connections. The Open Controller serves as the central processing unit with integrated visualization capabilities within the distributed I/O architecture.

Compliance & Certifications

• RoHS Compliant: Since 18.09.2018, meets substance restriction requirements
• WEEE Compliance: Take-back obligation applicable
• REACH Regulation: Contains lead, lead monoxide, silicic acid lead salt, BPA, and photoinitiator compounds (safe for intended use)
• Export Control: AL: N / ECCN: 9N9999
• CE Certification: Approved for industrial and domestic/commercial environments

Important Note This product is currently active (PLM Status: PM300) and available for new installations. Documentation and restore image are provided on CFast for complete system recovery capabilities.
