Siemens

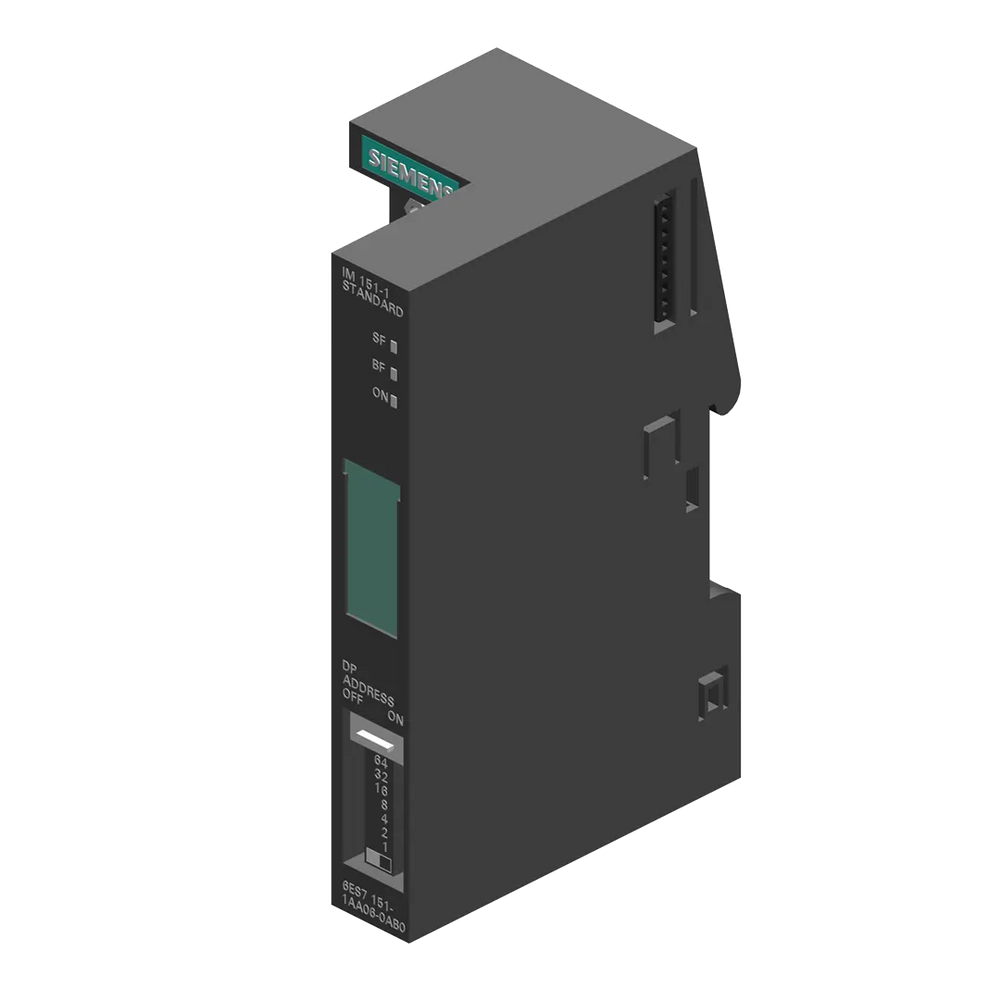

Siemens Simatic DP Interface module IM 151-1 Standard Part number 6ES7151-1AA06-0AB0

EAN / Barcode 4047623405795
Product Type Control Panel
Product Class Fieldbus, decentr. periphery - communication module
ETIM Class Fieldbus, decentr. periphery - communication module
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available

Product Description

SIMATIC DP, Interface module IM 151-1 Standard for ET 200S; incl. termination module Data volume of 244 bytes each for inputs and outputs; max. 63 I/O modules PROFIBUS DP V0 and V1 up to 2 m width can be connected; Bus connection via 9-pin D-sub

Technical Specifications

Degree of protection (IP)IP20
Depth75 mm
Height119.5 mm
Rail mounting possibleYes
Supply voltage DC28.8 V
Supporting protocol for PROFIBUSYes
System accessoryYes
Voltage type (supply voltage)DC
Width45 mm
With potential separationYes
Part Width8 mm
Part Height12 mm
Part Depth7 mm
Weight173 g
Country of OriginGermany
