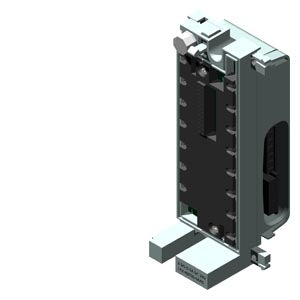

Siemens Simatic DP Electronic module, 8DO, 24VDC, 0.5A

Product Overview

SIMATIC DP electronic module for ET 200 PRO system featuring 8 digital outputs (DO) with 24V DC operation at 0.5A current rating. This compact digital expansion module includes integrated module diagnostics and comes with a bus module included. The connection module IO (6ES7194-4..00-0AA0) must be ordered separately to complete the installation. Designed for industrial automation applications requiring reliable digital output control in distributed I/O systems.

Key Features

• 8 digital outputs (DO) for versatile control applications
• 24V DC operation with 0.5A current rating per output
• Integrated module diagnostics for system monitoring
• Bus module included for seamless system integration
• Compact design optimized for ET 200 PRO system architecture
• Hot-swappable capability for maintenance convenience
• LED status indicators for operational feedback

Technical Specifications

• Article Number: 6ES7142-4BF00-0AA0
• Output Type: 8 Digital Outputs (DO)
• Voltage: 24V DC
• Current Rating: 0.5A per output
• Net Weight: 0.175 kg
• Packaging Dimensions: 7.50 x 13.80 x 6.80 cm
• Quantity Unit: 1 Piece
• EAN: 4025515073833
• UPC: 662643232936
• Country of Origin: Germany

System Requirements

• Connection Module: IO Connection Module 6ES7194-4..00-0AA0 (must be ordered separately)
• System Compatibility: ET 200 PRO distributed I/O system
• Communication: PROFIBUS DP protocol

Product Status

• Product Lifecycle: PM300 - Active Product
• Availability: Currently in production and available

Compliance & Certifications

• Export Control: AL: N / ECCN: 9N9999
• RoHS Compliance: Since 31.03.2008
• WEEE (2012/19/EU): Take-back obligation applicable
• Product Class: A - Standard product which is a stock item, returnable within guidelines

REACH Regulation Information This product contains substances from the candidate list in concentrations higher than 0.1% weight by weight (w/w):

• Lead
• Lead monoxide (lead oxide)

Based on currently available information, these substances do not pose risks when used as intended, including disposal. Please refer to product documentation for additional details.

Applications

• Industrial automation control systems
• Manufacturing process control
• Motor control and valve actuation
• Lighting and signaling systems
• Conveyor belt control
• Machine tool automation
• Building automation systems

Installation Notes

• Requires separate ordering of Connection Module IO (6ES7194-4..00-0AA0)
• Module diagnostics provide real-time status monitoring
• Hot-swappable design allows maintenance without system shutdown
• Compatible with standard ET 200 PRO mounting rails

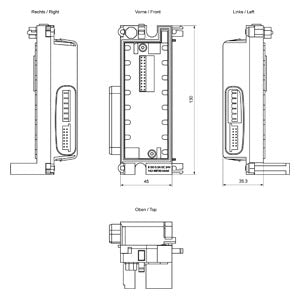

Download existing graphical data for this product:

• Product Datasheet
• Product Support Page
