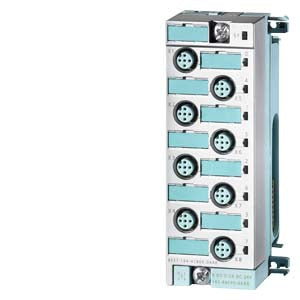

Siemens Simatic DP Connection module for digital elec mod Part number 6ES7194-4CB00-0AA0

Product Overview

The SIMATIC DP ET 200 PRO Digital Connection Module provides robust M12 connector interface for digital electronic modules in demanding industrial environments. Featuring 8 M12 connectors with IP65/67 protection rating, this connection module enables reliable field device connectivity for digital I/O applications while supporting cabinet-free installation directly at the machine for maximum flexibility and space efficiency.

Key Features

• 8 M12 Connectors: Industrial-grade M12 connection points for digital field devices
• IP65/67 Protection: Ruggedized design for harsh industrial environments and outdoor applications
• Cabinet-Free Installation: Direct machine mounting without control cabinet requirements
• Hot Swapping Support: Module replacement during operation without system shutdown
• Compact Design: 45mm width with 8-slot configuration for space-efficient installations
• Flexible Mounting: DIN rail, wall/direct, and front mounting options available
• Comprehensive Diagnostics: Advanced diagnostic capabilities for predictive maintenance
• Digital I/O Support: Compatible with various digital input/output electronic modules

Technical Specifications

• Connector Type: 8 × M12 industrial connectors
• Dimensions: 45 mm W × 130 mm H × 39 mm D | Weight: 0.357 kg
• Voltage Rating: 20.4-28.8V DC input/output | Current Rating: 8A maximum output
• Protection Class: IP65/67 | Number of Slots: 8 with pluggable modules
• Mounting: DIN rail, wall/direct, front mounting | Connection: M12 field connectors
• Operating Temperature: Industrial temperature range

Applications & Integration

Primary Applications:

• Digital sensor and actuator connection in distributed I/O systems
• Machine-level automation requiring ruggedized field connections
• Process control systems with harsh environmental conditions
• Mobile automation systems (AGVs, monorail systems)
• Building automation and warehouse logistics applications

System Compatibility:

• ET 200 PRO digital electronic modules for various I/O configurations
• SIMATIC ET 200 PRO CPUs and interface modules
• PROFINET and PROFIBUS communication networks
• TIA Portal engineering and configuration environment
• Standard ET 200 PRO module rack mounting systems

Quality & Compliance

• Status: Active Product (PM300) | Origin: Germany
• EAN: 4025515072225 | UPC: 662643224016
• RoHS Compliant: Since 31.03.2008 | WEEE: Take-back obligation applies
• REACH: Contains lead above 0.1% w/w (safe when used as intended)

Package Contents

• 1 × ET 200 PRO Digital Connection Module (8xM12), technical documentation, mounting hardware

Download existing graphical data for this product:

Data Sheet

Product Support Page

CAD/3D Models

ET 200 PRO System Information

Digital Expansion Modules
