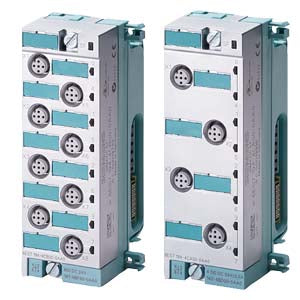

Siemens Simatic DP Electronic module, 8DI, 24VDC

Product Overview

SIMATIC DP electronic module for ET 200 PRO system featuring 8 digital inputs (DI) with 24V DC operation. This compact digital expansion module includes integrated module diagnostics and comes with a bus module included. The connection module IO (6ES7194-4..00-0AA0) must be ordered separately to complete the installation. Designed for reliable sensor monitoring and signal acquisition in IP65/67 distributed I/O systems, offering an optimal balance between input density and system cost-effectiveness.

Key Features

• 8 digital inputs (DI) for versatile sensor connectivity
• 24V DC operation with standard industrial voltage compatibility
• Integrated module diagnostics for comprehensive system monitoring
• Bus module included for seamless system integration
• Hot-swappable capability for maintenance without system shutdown
• Robust IP65/67 protection rating for harsh environments
• LED status indicators for individual channel monitoring
• Compact design optimized for space-efficient installations

Technical Specifications

• Article Number: 6ES7141-4BF00-0AA0
• Input Type: 8 Digital Inputs (DI)
• Voltage: 24V DC
• Net Weight: 0.170 kg
• Packaging Dimensions: 7.20 x 13.60 x 6.80 cm
• Quantity Unit: 1 Piece
• EAN: 4025515072171
• UPC: 662643232226
• Country of Origin: Germany

System Requirements

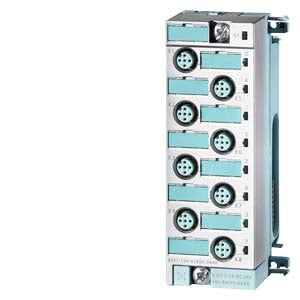

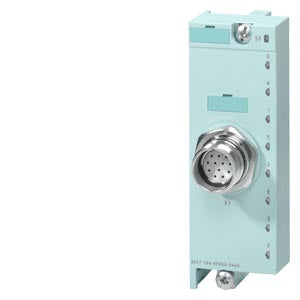

• Connection Module: IO Connection Module 6ES7194-4..00-0AA0 (must be ordered separately)
• System Compatibility: ET 200 PRO distributed I/O system
• Communication: PROFIBUS DP protocol
• Protection Rating: IP65/67 for outdoor and harsh environment applications

Compliance & Certifications

• Export Control: AL: N / ECCN: N
• RoHS Compliance: Since 31.03.2008
• WEEE (2012/19/EU): Take-back obligation applicable
• Product Class: A - Standard product which is a stock item, returnable within guidelines

Applications

• Manufacturing process monitoring with moderate input requirements
• Machine tool automation with essential sensor networks
• Conveyor belt monitoring systems
• Building automation with standard sensor inputs
• Process control systems with cost-effective input solutions
• Quality control systems with essential sensor monitoring
• Safety monitoring systems with basic sensor requirements
• General purpose industrial automation applications

Advanced Features

• Hot Swapping: Allows module replacement without system shutdown
• Module Diagnostics: Real-time monitoring of module health and individual channel status
• Balanced Input Density: 8 inputs providing optimal cost-to-functionality ratio
• Robust Construction: IP65/67 rating for harsh industrial environments
• Modular Design: Seamless integration with ET 200 PRO system architecture
• Individual Channel Monitoring: LED indicators for each input channel

Installation Notes

• Requires separate ordering of Connection Module IO (6ES7194-4..00-0AA0)
• Module diagnostics provide comprehensive status monitoring for all 8 channels
• Hot-swappable design maintains system continuity during maintenance
• Compatible with standard ET 200 PRO mounting rails
• Suitable for direct machine installation without control cabinet
• Optimized for cost-effective sensor monitoring applications

System Integration

• Seamless integration with SIMATIC automation systems
• Compatible with PROFIBUS DP communication protocol
• Supports standard industrial 24V DC sensor interfaces
• Modular design allows flexible system expansion
• Hot-swappable operation minimizes downtime during maintenance
