Siemens Signal cable, pre-assembled, with 24V Motion-connect, 500m
View on Siemens 📄 Datasheet
Siemens

Siemens Signal cable, pre-assembled, with 24V Motion-connect, 500m

SKU / Article No. 6FX5002-2DC10-1AF0
EAN / Barcode - None -
Product Type Cable & Cable Management
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available

Product Description

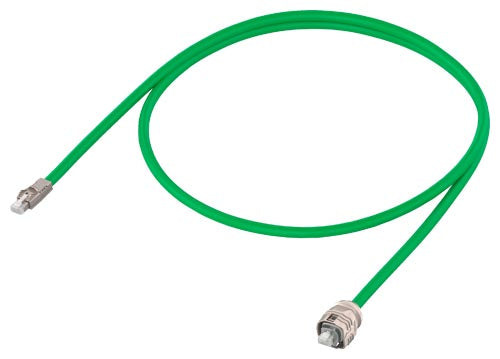

This 5.0-meter DRIVE-CLiQ encoder cable with RJ45 connectors is engineered for flexible installation in motion control setups. It offers a 500 V test voltage for signal conductors, making it ideal for applications with frequent bending and motion.

Technical Specifications

Compliance / CertificationsUL STYLE 2502 (USA) / CSA-N.210.2-M90 (Canada)
Country of OriginGermany
FlammabilityEN 60332-1-1 to 1-3
Temperature: Operating 0°C to 60 °C
Material: Inner Conductor / CoreSilicone / Without CFC
Material: Jacket / Outer SheathPVC DESINA
Bending RadiusFixed: 35 / Flexible: 125
Part Length (mm)5 000mm
Diameter: External conduit size (mm)7.1mm
Connection TypeBasis cable / RJ45 DRIVE-CLiQ
Test Voltage500 V
Voltage Range/Rating30 V
ColourGreen
RAL CodeRAL 6018
View complete specifications on Siemens
