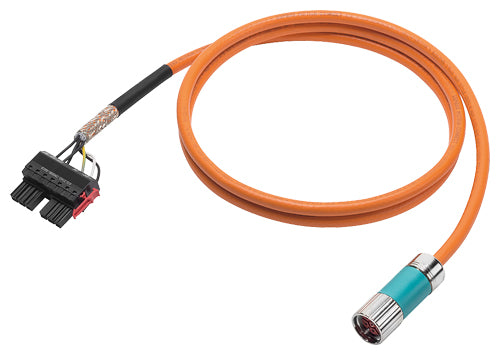

Siemens Power cable, pre-assembled, 4 x 1.5C, (L) 8.4mm Part number 6FX5002-5CS06-1AF0

Name: Siemens Power cable, pre-assembled, 4 x 1.5C, (L) 8.4mm
Brand: Siemens
SKU: 6FX5002-5CS06-1AF0

Product Type Cable & Cable Management

Back Order

View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available

Product Description

This 5.0-meter SINAMICS S120 power cable is designed for demanding industrial setups, handling up to 4 kV test voltage and 600/1000 V rated voltage. The cable supports flexibility and durability in dynamic operations.

Technical Specifications

Compliance / Certifications	UL758 (USA) / CSA-C22.2-N.210.2-M90 (Canada)
Country of Origin	Germany
Flammability	EN 60332-1-1 to 1-3
Temperature: Operating	0°C to 60 °C
Material: Inner Conductor / Core	Silicone / Without CFC
Material: Jacket / Outer Sheath	PVC DESINA
Bending Radius	Fixed: 21 / Flexible: 155
Part Length (mm)	5 000mm
Diameter: External conduit size (mm)	8.4mm
Weight	600g
Connection Type	Conector full thread
Test Voltage	2.0 kV (rms Signal conductors) - 4.0 kV (rms Power conductors)
Voltage Range/Rating	600 V / 1000 V
Colour	Orange
RAL Code	RAL 2003
