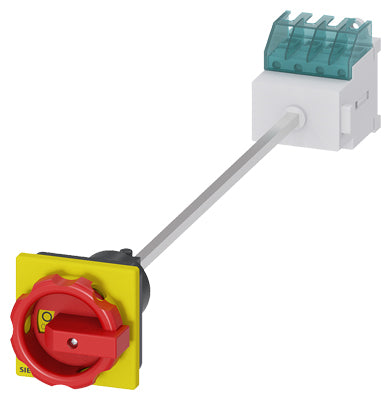

Siemens Sentron Switch disconnector, 3LD, EMG, 3-pole, 16A
View on Siemens 📄 Datasheet
Siemens

Siemens Sentron Switch disconnector, 3LD, EMG, 3-pole, 16A Part number 3LD2013-0TK53

EAN / Barcode 4011209519190
Product Type Control Panel
Product Class Switch disconnector (low voltage)
ETIM Class Switch disconnector (low voltage)
In Stock
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available

Product Description

Sentron

The SENTRON Switch disconnector 3LD is an emergency switching-off switch designed for safe shutdown of loads in various industrial applications.

Technical details:

  • Model: 3LD
  • Type: Emergency switching-off switch
  • Poles: 3-pole
  • Iu: 16 A
  • Operating power / at AC-23 A 400 V: 7.5 kW
  • Mounting: Floor mounting with door coupling
  • Operating mechanism: Rotary operating mechanism
  • Color: Red / yellow
  • Mounting: 4-hole mounting of the handle
  • Degree of protection: IP65
  • Approvals: IEC, UL, CCC, and shipbuilding approvals

Customer benefits:

  • Safe shutdown of loads in many areas, including three-phase motors and air conditioning systems.
  • Modular design enables fast and easy mounting of auxiliary switches or a 4th pole.
  • Optimum disconnection capability from the power supply ensures user and system safety.
  • Versatile application possibilities worldwide due to international approvals.
  • Available in a wide range of variants for different mounting options.

Technical Specifications

Colour control elementRed
Degree of protection (IP), front sideIP65
Degree of protection (NEMA)Other
Depth430 mm
Device constructionBuilt-in device fixed built-in technique
Height84 mm
InterlockableYes
Max. rated operation voltage Ue AC690 V
Number of poles3
Number of switches1
Rated operation power at AC-23, 400 V8 kW
Rated operation power at AC-3, 400 V6 kW
Rated permanent current at AC-21, 400 V16 A
Rated permanent current at AC-23, 400 V16 A
Rated permanent current Iu16 A
Rated short-time withstand current lcw0.34 kA
Suitable for floor mountingYes
Suitable for front mounting 4-holeYes
Type of control elementShort thumb-grip
Type of electrical connection of main circuitFrame clamp
Version as emergency stop installationYes
Version as main switchYes
Version as maintenance-/service switchYes
Version as safety switchYes
Width67 mm
Width in number of modular spacings3
View complete specifications on Siemens
