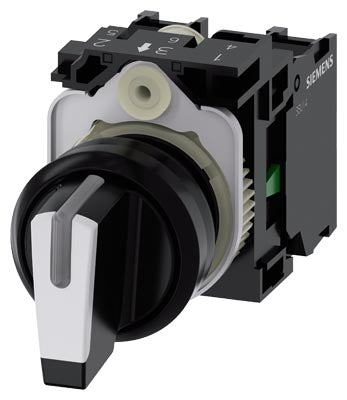

Siemens Selector switch, illuminable, screw, 3-position, 1NO, 22mm Part number 3SU1100-2BM60-1NA0

Product Overview

The Siemens 3SU1100-2BM60-1NA0 is a SIRIUS ACT selector switch — a 22 mm, round, plastic, illuminable selector switch with a short actuator. It features three switch positions (I > O < II) with momentary-contact operation (return on release), suitable for control panels and user-interfaces in industrial control and automation systems.

Key Features

• 22 mm round selector switch, plastic housing, short actuator
• Illuminable design (supports optional light source)
• Three switch positions: I > O < II (momentary contact, return-on-release)
• Single command point (one actuator per unit)
• Standard screw-terminal contact module(s)
• Suitable for installation in control panels, operator consoles or machine-control stations
• SIRIUS ACT modular system: compatible with associated holders and contact modules

Technical Specifications

• Article Number: 3SU1100-2BM60-1NA0
• Product Family: SIRIUS ACT selector switches
• Actuator Type: Selector, short actuator
• Mounting Diameter: 22 mm
• Actuator Color: White (plastic)
• Switch Positions: I – O – II (momentary, return on release)
• Contact Module Supplied: 1 NO + 1 NO (two independent NO contacts) via contact modules
• Terminal Type: Screw-type terminals
• Rated Contact Current: 10 A (typical for selector-switch contacts)
• Rated Insulation Voltage: up to 500 V AC (as typical with 3SU1 series selector switches)
• Number of Command Points: 1
• Housing Material: Plastic (black collar, white actuator)
• Illumination Option: Yes (optional light source module)
• Compliance Standards: IEC / EN 60947-5-1 (switchgear and control-gear standard for control devices)

Compliance & Certifications

• Designed according to IEC / EN 60947-1 and IEC / EN 60947-5-1 for control devices and signalling switches
• Part of the SIRIUS ACT modular system — ensures compatibility, safety and industrial-grade reliability
• Suitable for standard industrial control-panel installations

Applications

The 3SU1100-2BM60-1NA0 selector switch is ideal for operator control panels, HMI consoles, machine-control enclosures, and control-cabinet front panels where a compact, reliable, momentary selector control is required. Typical applications include motor control stations, control circuits for machinery, manual overrides, mode selection (e.g. ON/OFF/ALTERNATE), control of conveyors, pumps or fans, and general industrial automation systems requiring a robust selector switch with optional illumination.
