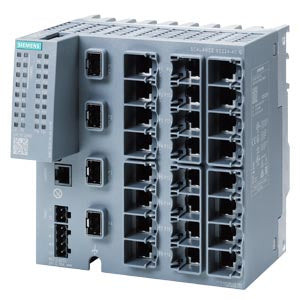

Siemens Scalance XC224-4C G Manageable IE switch, layer 2 Part number 6GK5224-4GS00-2AC2

Product Overview

The Siemens SCALANCE XC224-4C G (6GK5224-4GS00-2AC2) is a manageable industrial Layer 2 Ethernet switch designed for high-performance industrial networks with full gigabit capability. Featuring 20x 10/100/1000 Mbps RJ45 ports and 4x combo ports (usable as SFP or RJ45), it provides flexible network scalability for high data throughput environments. The device is IEC 62443-4-2 certified for industrial cybersecurity, supports redundancy mechanisms, PROFINET IO, Ethernet/IP, and offers extended operating temperatures from -40 °C to +70 °C. Suitable for harsh industrial environments, it includes a C-PLUG slot, redundant power supply support, console port, and diagnostics LEDs for efficient operation and maintenance.

Key Features

• SCALANCE XC224-4C G industrial managed switch
• Full Gigabit performance for high bandwidth applications
• 20 × 10/100/1000 Mbps RJ45 ports
• 4 × combo ports (SFP or 10/100/1000 Mbps RJ45 selectable)
• IEC 62443-4-2 certified — enhanced cybersecurity protection
• Layer 2 switching with advanced management functions
• PROFINET IO device support and Ethernet/IP-compliant
• Redundant power supply input for high availability networks
• Diagnostics LEDs for operational and status monitoring
• Supports redundancy and office networking protocols including RSTP, VLAN and more
• C-PLUG slot for configuration backup and fast device replacement
• IEEE 1588v2 PTP support for precise network time synchronization

Technical Specifications

• Article Number: 6GK5224-4GS00-2AC2
• Model: SCALANCE XC224-4C G
• Switch Type: Industrial Layer 2 Managed Switch
• RJ45 Ports: 20 × 10/100/1000 Mbps
• Combo Ports: 4 × SFP or RJ45 selectable (1000 Mbps)
• Console Port: 1 × console for configuration/maintenance
• Power Supply: Redundant input supported
• Operating Temperature: -40 °C to +70 °C
• Certifications: IEC 62443-4-2 cybersecurity certified
• Mounting: DIN rail / S7 rail / wall mount
• Network Features: RSTP, VLAN, redundancy functions, PROFINET IO, Ethernet/IP
• Timing Protocol: IEEE 1588v2 PTP
• Other Features: C-PLUG slot for configuration storage

Compliance & Standards

• IEC 62443-4-2 cybersecurity compliant
• PROFINET IO certified
• Ethernet/IP compatible
• Designed for industrial automation and harsh environmental operation

Applications

Suitable for high-availability industrial Ethernet networks in factory automation, process plants, power systems, infrastructure, and industrial communication backbones. Ideal for applications requiring high port density, redundancy, full gigabit throughput, cybersecurity compliance, precise time synchronization, and PROFINET/Ethernet/IP integration.
