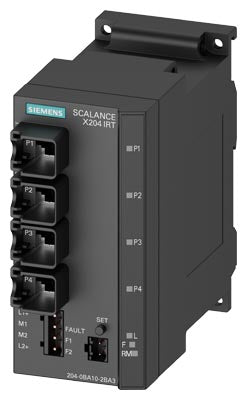

Siemens SCALANCE X204IRT Managed switch, 4-port, RJ45 Part number 6GK5204-0BA10-2BA3

Product Overview

The Siemens 6GK5204-0BA10-2BA3 is a managed industrial Ethernet switch from the SCALANCE X204IRT series. It features four 10/100 Mbps RJ45 ports and supports PROFINET IO and IRT (Isochronous Real Time) communication for use in high-demand automation networks.

Key Features

• Managed Ethernet switch with IRT and PROFINET IO support
• 4 × 10/100 Mbps RJ45 ports for industrial Ethernet connectivity
• Error signalling contact and set button for system diagnostics

Technical Specifications

• Article Number: 6GK5204-0BA10-2BA3
• Series: SCALANCE X204IRT managed switch
• Number of Ports: 4 RJ45 ports (10/100 Mbps)
• Supported Protocols: PROFINET IO, IRT (Isochronous Real Time), Ring-redundancy protocols
• Supply Voltage: 24 V DC nominal (range: 18…32 V DC)
• Power Loss (rated): approx. 3.4 W
• Operating Ambient Temperature: –40 °C … +70 °C
• Dimensions (W × H × D): approx. 60 mm × 125 mm × 124 mm
• Protection Class: IP30 (housing)

Compliance & Certifications

• Compliant with industrial-Ethernet and network-switch standards for automation systems
• Designed and manufactured to Siemens SCALANCE quality standards for rugged industrial applications

Applications

Used in industrial automation networks requiring high-performance Ethernet switching with support for PROFINET and IRT. Applicable in control cabinets and panel installations for machine tools, factory automation cells, process plants and any environment requiring robust, deterministic network communication.
