Siemens

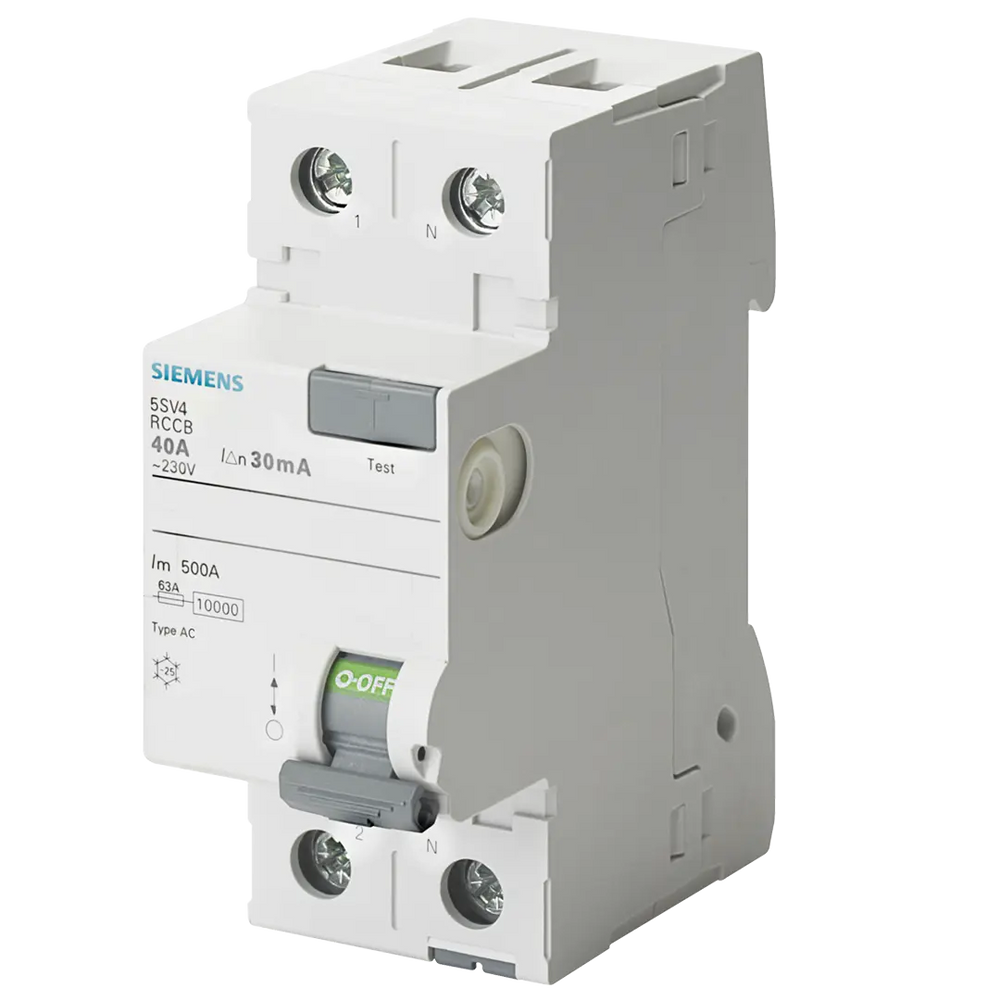

Siemens Residual current operated circuit breaker, 2-pole Part number 5SV4316-0

EAN / Barcode 4001869429793
Product Type Control Panel
Product Class Residual current circuit breaker (RCCB)
ETIM Class Residual current circuit breaker (RCCB)
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration♻ EPD🌱 EcoTech Profile

Product Description

Whenever working on an electrical installation, there is always a risk factor. Siemens Residual current operated circuit breaker, 5SV4316-0, 2-pole plays a vital role within the SENTRON protective components installation. With this in mind, the Residual current device is designed to safely disconnect hazardous residual currents through grounding.

Electrical originated fires are also another problematic area within Automation. By including RC (Residual current) Operated circuit breaker, one has time to prevent the outbreak as they occur. No matter if the trouble occurred through direct or indirect contact, the device is equipped with a protection function to rapidly shut down.

Technical Specifications

Additional equipment possibleYes
Ambient temperature during operating-25 °C
Built-in depth70 mm
Connectable conductor cross section multi-wired35 mm²
Connectable conductor cross section solid-core35 mm²
Degree of protection (IP)IP20
Frequency50 Hz
Leakage current typeAC
Mounting methodOther
Number of poles2
Pollution degree2
Power loss5.3 W
RAL-number (similar)7035
Rated current63 A
Rated fault current0.03 A
Rated impulse withstand voltage Uimp6 kV
Rated insulation voltage Ui2000 V
Rated voltage230 V
Short-circuit breaking capacity (Icw)10 kA
Voltage typeAC
Width in number of modular spacings2
With interlocking deviceYes
Part Width97 mm
Part Height42 mm
Part Depth85 mm
Weight211 g
Country of OriginGermany
View complete specifications on Siemens

Videos & Media

Product Overview

Overview, features and application examples
