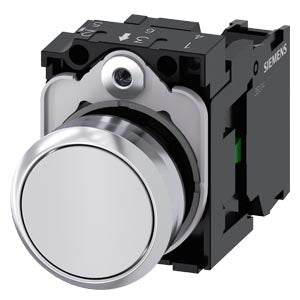

Siemens Pushbutton, white, flat, screw terminal, 22 mm Part number 3SU1150-0AB60-1BA0

Product Overview

SKU: 3SU1150-0AB60-1BA0

This SIRIUS ACT pushbutton is a professional-grade 22mm round control device featuring a white, flat momentary contact pushbutton with metal construction and shiny finish. The unit is designed as a pushbutton, 22 mm, round, metal, shiny, white, pushbutton, flat, momentary contact type, 1 NO, screw terminal.

Key Features:

• Size: 22mm round design for standard panel mounting
• Contact Configuration: 1 NO (Normally Open) contact
• Material: Metal construction with shiny finish
• Color: White actuator
• Operation: Momentary contact type with flat button design
• Connection: Screw terminal connections
• Protection Rating: IP66/IP67/IP69K rated for harsh industrial environments
• Series: Part of the SIRIUS ACT 3SU11 series

Technical Specifications:

• Operating Voltage: Up to 500V AC/DC
• Current Rating: 10A thermal current
• Operating Temperature: -25°C to +70°C
• Mounting Diameter: 22.3mm
• Net Weight: 0.069 kg
• Electrical Endurance: 10,000,000 switching cycles
• Mechanical Service Life: 10,000,000 operations
• Contact Material: Silver alloy

Applications: Ideal for industrial automation, machine control panels, process control systems, and demanding industrial environments where reliable momentary switching is required.

Compliance & Standards:

• RoHS compliant since 01.10.2014
• CE, UL, CSA, CCC, and EAC approved
• Country of origin: Germany
• WEEE (2012/19/EU) Take-Back Obligation: Yes

Package Information:

• EAN: 4011209958333
• Packaging Dimensions: 50.00 x 80.00 x 30.00 mm
• Quantity Unit: 1 Piece

Download existing graphical data for this product:

• Official Product Datasheet (PDF)
• Product Family Catalog
• SIRIUS ACT Product Information
• Technical Support Documentation
