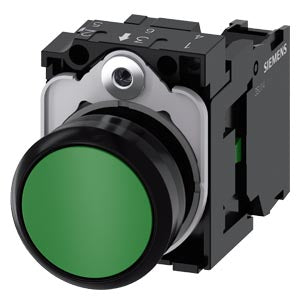

Siemens Pushbutton, momentary contact, plastic, green, 1NO

Product Overview

This SIRIUS ACT pushbutton is designed for reliable switching and control applications in industrial environments. The 22mm round pushbutton features a robust plastic construction with a green flat button design, providing excellent tactile feedback and high visibility. This complete unit includes a holder with 1 NO (normally open) contact and screw terminals for easy installation and wiring.

Key Features

• Size: 22mm diameter round design
• Construction: High-quality plastic body with green flat button
• Contact Type: Momentary contact operation
• Contact Configuration: 1 NO (normally open) contact included
• Terminal Type: Screw terminals for secure connections
• Button Style: Flat surface design
• Mounting: Panel mount with 22mm cutout diameter
• Protection Rating: IP67/IP69K - providing protection against dust, water immersion, and high-pressure cleaning

Technical Specifications

• Article Number: 3SU1100-0AB40-1BA0
• EAN: 4011209959378
• Series: SIRIUS ACT 3SU11
• Net Weight: 0.048 kg
• Push Button Diameter: 29.45mm
• Panel Cutout Diameter: 22.3mm
• Opening Width: 29.5mm
• Opening Height: 11mm
• Operating Temperature Range: -25°C to +70°C
• Maximum Voltage: 500V AC/DC
• Contact Configuration: SPST (Single Pole Single Throw)
• Contact Current Rating: 10A
• Packaging: 60.00 x 100.00 x 30.00 mm
• Country of Origin: Germany

Electrical Specifications

• Contact Arrangement: 1 NO (normally open)
• Terminal Connection: Screw terminal
• Voltage Rating: Up to 500V AC/DC
• Contact Material: Silver-plated for reliable conductivity
• Number of Command Points: 1

Compliance & Certifications

• RoHS Compliance: Compliant since 01.10.2014
• Export Control: AL: N / ECCN: N
• WEEE Take-Back: Yes, compliant with 2012/19/EU directive
• Protection Rating: IP67/IP69K

Applications Part of the SIRIUS ACT portfolio, this pushbutton is ideal for industrial control applications requiring reliable momentary switching. The green color follows international standards for start/go functions and safe operation indication. The complete unit design simplifies installation with integrated holder and contact block, making it perfect for control panels, machinery interfaces, and automation systems where positive action confirmation is required.

Product Series Information Under the brand name SIRIUS ACT, Siemens offers a comprehensive portfolio of pushbuttons and signaling devices with global product approvals. The innovative snap-on concept makes installation easy and can be done with one hand without special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated. The rugged devices are suitable for industrial use and outdoor applications, with resistance to dust, oils, and caustic solutions.
