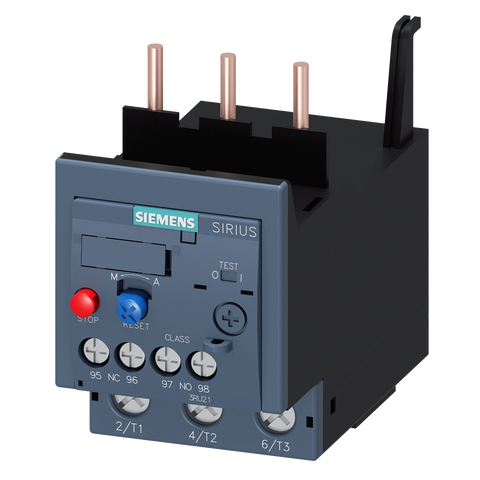

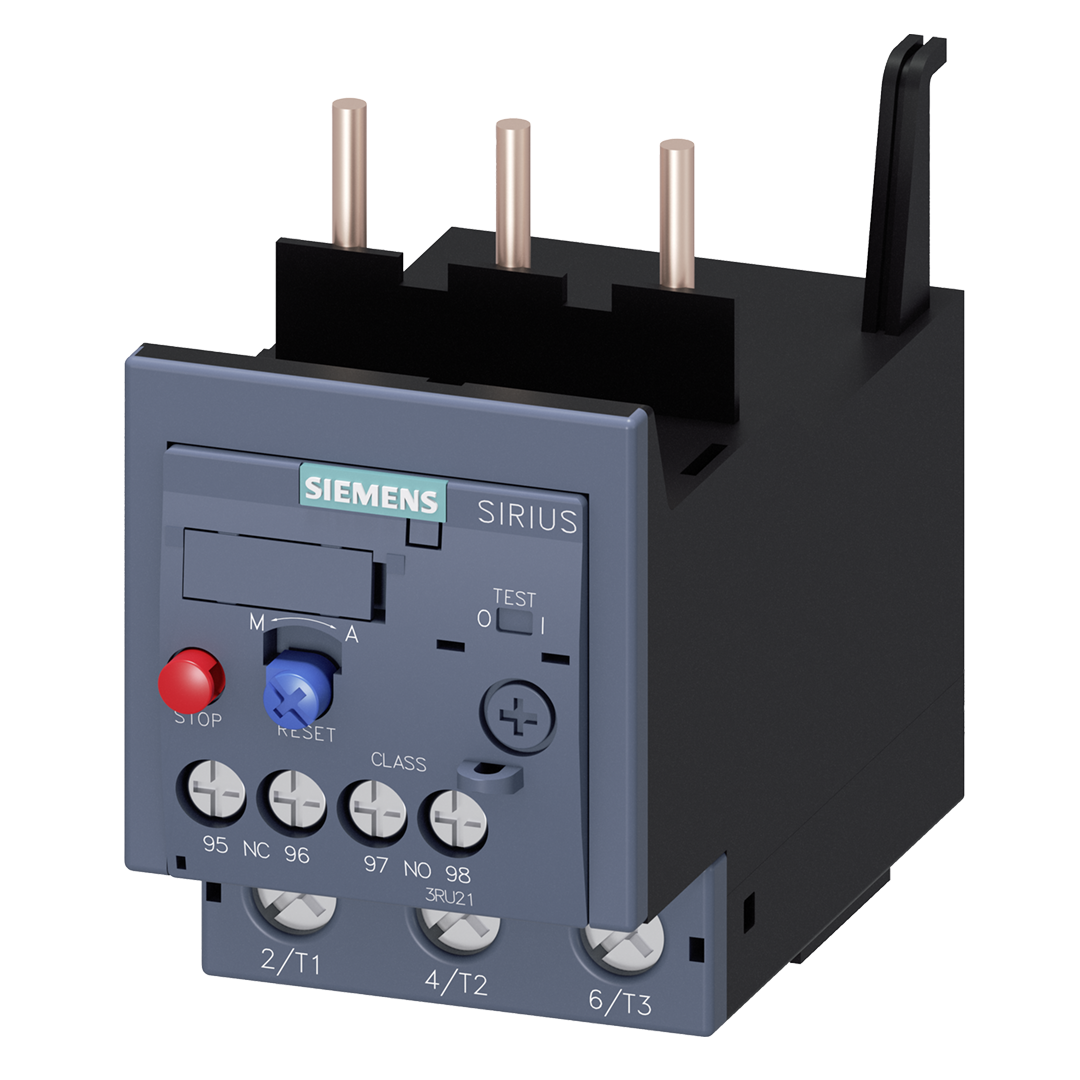

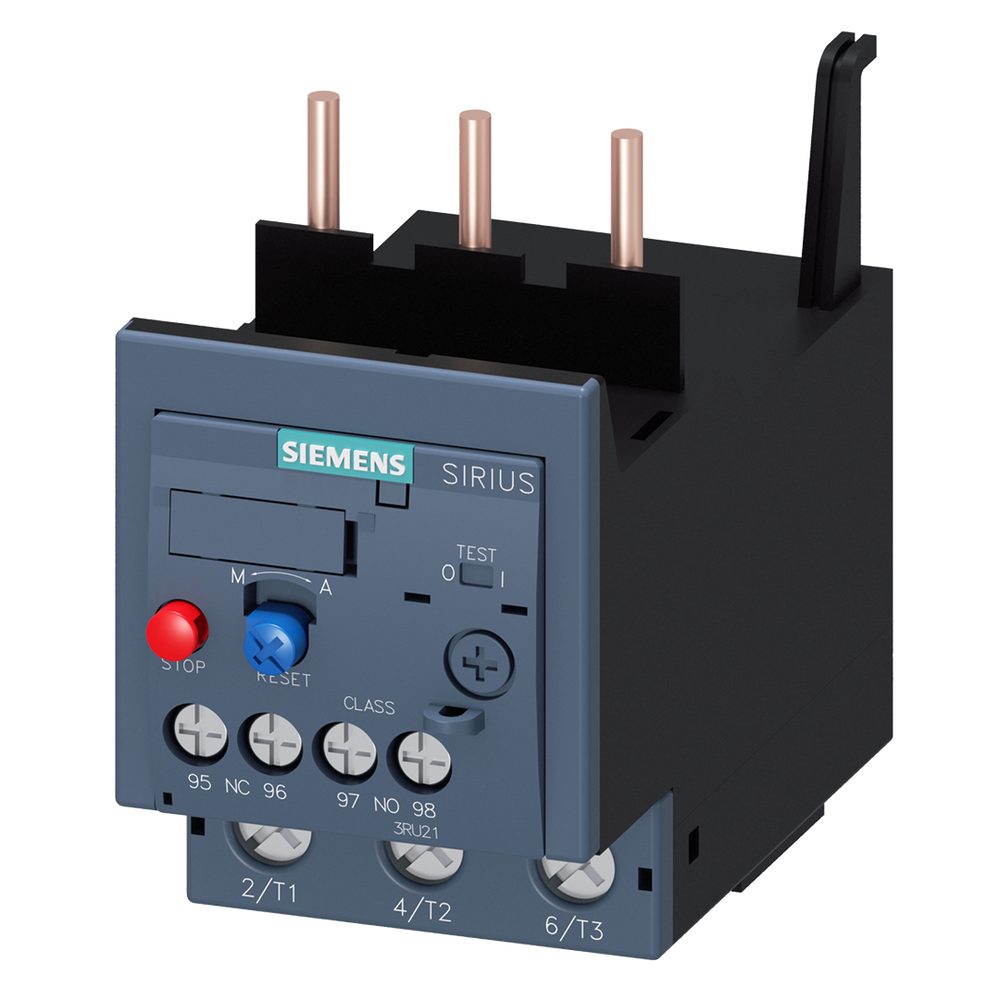

Siemens Overload relay, Thermal For motor protection Size S2 Part number 3RU2136-4KB0

EAN / Barcode 4011209916784
Product Type Control Panel
Product Class Thermal overload relay
ETIM Class Thermal overload relay
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
♻ EPD

Product Description

Siemens thermal overload relay, 3RU2136-4KB0 is the perfect fit for current-dependent overload protection in the main circuit. The thermal overload relay offers a wide setting range of 62 - 73 A. The SIRIUS overload relay provides an excellent safeguard for motors and systems. The thermal overload relay is designed to effortlessly be inserted due to its optimised size S2 as well as a Contactor mounting Main circuit: Screw Auxiliary circuit: Screw Manual-Automatic-Reset.

Monitoring relays are used in all areas of electrical switchgear technology.

Technical Specifications

Adjustable current range73 A
Max. rated operation voltage Ue690 V
Mounting methodDirect attachment
Number of auxiliary contacts as normally closed contact1
Number of auxiliary contacts as normally open contact1
Release classCLASS 10 A
Reset function automaticYes
Reset function push-buttonYes
Type of electrical connection of main circuitScrew connection
Part Width61 mm
Part Height96 mm
Part Depth111 mm
Weight355 g
Country of OriginGermany
View complete specifications on Siemens
