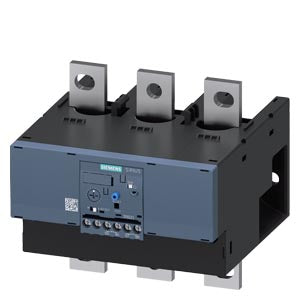

Siemens Overload relay for motor protection, size S10/S12, 55 - 250A

Product Overview

Overload relay rated for 55...250 A designed for comprehensive motor protection with Size S10/S12 configuration and Class 10E protection characteristics. This electronic overload relay features versatile mounting options including contactor mounting and stand-alone installation, with busbar connection for main circuit and screw terminal for auxiliary circuit connections, plus Manual-Automatic-Reset functionality.

Key Specifications:

Electrical Characteristics:

• Current Rating: 55...250 A
• Size: S10/S12
• Protection Class: 10E
• Reset Options: Manual-Automatic-Reset

Physical Characteristics:

• Net Weight: 1.603 kg
• Packaging Dimensions: 154.00 x 156.00 x 175.00 mm
• Packaging Quantity: 1 piece

Product Details:

• Article Number: 3RB2066-1GC2
• EAN: 4011209638389
• Country of Origin: Germany
• Product Lifecycle: PM300 Active Product

Connection Types:

• Main Circuit: Busbar connection
• Auxiliary Circuit: Screw terminal

Installation Options:

• Contactor mounting
• Stand-alone installation
• Designed for motor protection applications

Compliance & Standards:

• RoHS Compliant: Since 01.07.2006
• WEEE Take-Back Obligation: Yes
• Export Control: AL: N / ECCN: N

REACH Information: Contains substances of very high concern including Lead, Lead monoxide, and 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol in concentrations higher than 0.1% w/w. These substances do not pose risk when used as intended.

Product Classification:

• eClass: 27-37-15-02
• ETIM: EC001080
• UNSPSC: 39-12-23-30

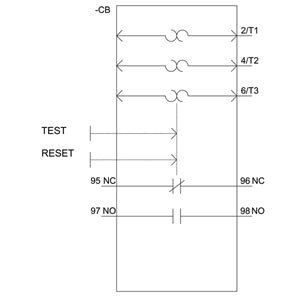

Download existing graphical data for this product:

Product Datasheet (PDF)
