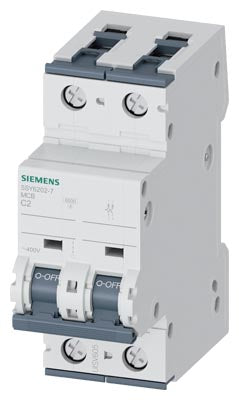

Siemens Miniature circuit breaker, C, 2-pole, 400V, 6kA, 2A, Ø70mm Part number 5SY6202-7

Product Overview

The Siemens 5SY6202-7 is a SENTRON 5SY6-series miniature circuit breaker (MCB), 2-pole configuration with a rated current of 2 A. It provides reliable overload and short-circuit protection for low-voltage AC and DC circuits in residential, commercial, or light-industrial electrical installations. Its compact 2-pole design and DIN-rail mounting make it suitable for compact distribution boards and general circuit protection applications.

Key Features

• 2-pole miniature circuit breaker (2P)
• Rated current: 2 A
• Tripping characteristic: Class C (suitable for general and light-inductive loads)
• Breaking capacity: 6 kA (standard), up to 30 kA according to IEC 60947-2 under certain conditions
• Combined top and bottom terminals for flexible wiring
• Touch-protected, halogen-free and sealable design
• DIN-rail mounting (35 mm standard rail) — quick assembly and compact installation

Technical Specifications

• Article Number: 5SY6202-7
• Product Family: SENTRON 5SY6 miniature circuit breakers
• Number of Poles: 2 (2P)
• Rated Current (In): 2 A
• Tripping Characteristic: Class C
• Rated Operational Voltage (Ue): 400 V AC (230 V single-phase) / up to 72 V DC
• Insulation Voltage (Ui): 440 V AC
• Switching / Breaking Capacity (Icn / Icu): 6 kA (EN 60898-1 standard), up to 30 kA (IEC 60947-2) depending on conditions
• Power Loss per Pole (at rated current): 1.2 W
• Connection Cross-Section (solid / stranded): 0.75 … 35 mm²
• Mounting Type: DIN-rail (35 mm) snap-on / quick-assembly system
• Modular Width: 2 modules
• Dimensions (approx. H × W × D): 90 mm × 36 mm × 76 mm
• Protection Class: IP20 (with connected conductors)
• Ambient Operating Temperature: –25 °C … +55 °C
• Mechanical Service Life: typical 10 000 operating cycles

Compliance & Certifications

• Compliant with IEC/EN 60898-1 and IEC/EN 60947-2 standards for miniature circuit breakers
• Designed according to SENTRON 5SY6 series specifications — halogen-free, touch-protected, sealable and silicon-free
• Suitable for installation in residential, commercial and light-industrial electrical systems under standard operating conditions

Applications

This 5SY6202-7 miniature circuit breaker is ideal for protecting branch circuits in distribution boards — such as lighting circuits, small socket-outlet circuits, control circuits, or other low-current loads. It is suitable for residential, commercial or light-industrial installations requiring compact 2-pole protection, simple DIN-rail mounting and reliable overcurrent/short-circuit protection. It can be used for both single-phase and multiphase AC circuits, and DC circuits up to its rated voltage.
