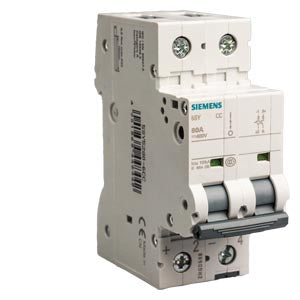

Siemens Miniature circuit breaker, 1+N-pole, curve D, 6kA, 230V, 10A Part number 5SY6510-8CC

Product Overview

The Siemens SENTRON 5SY6510-8CC is a 1 + N-pole miniature circuit breaker rated at 230 V AC, with a breaking capacity of 6 kA, and a rated current of 10 A. It is designed for protection in industrial and building low-voltage installations, offering reliable short-circuit and overload protection in a compact form factor.

Key Features

• Miniature circuit breaker, 1 + N-pole configuration
• Rated voltage: 230 V AC
• Rated current: 10 A
• Breaking capacity: 6 kA at AC voltage rating
• Slim mounting width suitable for DIN-rail installation
• Simple DIN rail mounting and compact installation footprint

Technical Specifications

• Product Series: Siemens SENTRON Miniature Circuit Breaker
• Article Number: 5SY6510-8CC
• Number of Poles: 1 + N
• Rated Operational Voltage (Ue): 230 V AC
• Rated Current (In): 10 A
• Breaking Capacity (Icu): 6 kA (AC)
• Mounting Width: 2 modular width units (MW) typical
• Dimensions (Approx.): Height 90 mm × Width 36 mm × Depth 76 mm
• Net Weight (Approx.): 0.317 kg

Compliance & Certifications

• Complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards for circuit breakers
• Protection class: IP20 (with connected conductors)
• Designed for industrial and building installation environments with robust safety and performance characteristics

Applications

Ideal for low-voltage distribution boards, control panels and industrial installations where space is limited but reliable circuit protection is required. The 5SY6510-8CC offers dependable overload and short-circuit protection in compact installations, making it suitable for use in commercial buildings, machinery control systems and infrastructure installations.
