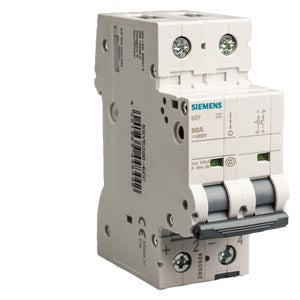

Siemens Mini Circuit breaker 230V, 15kA, 1+N-pole, C, 6A Part number 5SY7506-7CC

Product Overview

Siemens Mini Circuit Breaker, 230 V, 15 kA, 1+N-pole, C-curve, 6 A (5SY7506-7CC) is a high-performance SENTRON protective device designed to provide reliable overload and short-circuit protection for single-phase electrical circuits. The integrated phase and neutral switching design ensures complete disconnection and safe isolation, making it ideal for modern distribution boards and control panels where high breaking capacity and compact DIN-rail mounting are required.

Key Features

• SENTRON miniature circuit breaker
• 1+N-pole configuration (phase and neutral switched)
• Rated current: 6 A
• C-curve magnetic-thermal tripping characteristic
• High breaking capacity of 15 kA
• Rated operational voltage: 230 V AC
• Protection against overloads and short circuits
• Compact modular design for DIN-rail mounting
• Screw terminal connections
• Touch-safe and sealable housing

Technical Specifications

• Article Number: 5SY7506-7CC
• Product Family: SENTRON 5SY7 miniature circuit breakers
• Device Type: Miniature circuit breaker (MCB)
• Number of Poles: 1+N
• Rated Current (In): 6 A
• Tripping Characteristic: C-curve
• Rated Operational Voltage: 230 V AC
• Rated Insulation Voltage (Ui): 250 V
• Rated Impulse Withstand Voltage (Uimp): 4 kV
• Breaking Capacity: 15 kA
• Energy Limitation Class: 3
• Frequency: 50 / 60 Hz
• Connection Type: Screw terminals
• Conductor Cross-Section: 0.75 … 35 mm²
• Tightening Torque: 2.5 … 3.5 N·m
• Protection Degree: IP20 (with connected conductors)
• Overvoltage Category: III
• Pollution Degree: 3
• Mounting: DIN rail
• Modular Width: 2 units
• Dimensions (H × W × D): approx. 90 mm × 36 mm × 70 mm
• Weight (approx.): ~0.30 kg
• Operating Temperature: −25 °C to +55 °C
• Storage Temperature: −40 °C to +75 °C

Compliance & Certifications

• Manufactured to Siemens SENTRON industrial protection standards
• Designed to IEC and EN miniature circuit breaker specifications
• CE compliant
• RoHS compliant

Applications

The Siemens 5SY7506-7CC miniature circuit breaker is used to protect single-phase electrical circuits in distribution boards and control panels. Its high 15 kA breaking capacity and integrated phase-neutral disconnection make it ideal for lighting circuits, socket outlets and control circuits in residential, commercial and industrial installations.
