Product Overview

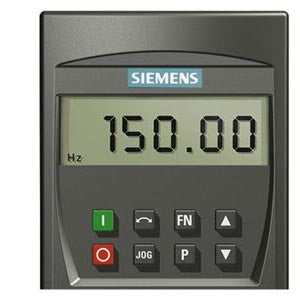

MICROMASTER 4 Basic Operator Panel (BOP) for adjusting and displaying inverter parameters. Compact operator panel designed for use with MICROMASTER 420 and 440 series drives. Features 8-key interface with 2-line display for drive control and monitoring. Spare part for legacy systems. Article Number: 6SE6400-0BP00-0AA1.

Key Specifications

Display & Interface:

• 2-line display for clear visibility
• 8-key interface for parameter navigation
• Easy-to-use interface for drive control and monitoring
• Intuitive design for quick parameter access
• Clear parameter display and adjustment capability

System Compatibility:

• Compatible with MICROMASTER 420 series inverters
• Compatible with MICROMASTER 440 series inverters
• Enables access to parameter levels 1 to 3
• Supports parameter modification and setup
• Designed for MICROMASTER 4 drives

Control Functions:

• Parameter setting and adjustment
• Drive monitoring and control
• Status display and fault indication
• Quick commissioning support
• Real-time parameter changes

Technical Features:

• Compact design for space-efficient installation
• Snap-on mounting for easy installation
• Direct connection to inverter
• Parameter backup and restore capability
• Multi-language support

Physical Specifications

• Dimensions: 80 × 110 × 40 mm
• Net weight: 0.3 kg
• Degree of protection: IP20
• Mounting: Snap-on to inverter front panel
• Connection: Direct to inverter interface

Product Identifiers

• EAN: 4019169458955
• UPC: 040892791433
• Country of origin: Great Britain

Compliance Information

• RoHS compliant since: 01.07.2006
• WEEE (2012/19/EU) Take-Back Obligation: No

REACH Regulation Information

There is currently no information on SVHC (Substances of Very High Concern) from the supply chain and established procedures for screening products for Substances of Very High Concern. Products are regularly compared with information from upstream users regarding substances indicated in the candidate list in accordance with REACH regulation requirements. Information will be updated as new findings become available.

Important Notes

• Spare part only - This product is a spare part for legacy systems
• Product status: Cancelled since 01.10.2019
• For assistance, contact your local Siemens office
• Essential accessory for MICROMASTER 420/440 parameter setup
• Enables complete inverter configuration and monitoring
• Allows access to advanced parameter functions

Functionality

Parameter Access:

• Level 1: Basic drive parameters
• Level 2: Advanced configuration parameters
• Level 3: Expert-level system parameters
• Read-only parameters for monitoring (rXXXX)
• Parameter groups for organized navigation

User Benefits:

• Simplifies drive setup and operation
• Enhances user experience with intuitive design
• Enables on-site parameter adjustment
• Provides immediate feedback on drive status
• Supports troubleshooting and diagnostics

Operation Features:

• Direct parameter modification
• Real-time value display
• Status monitoring
• Fault code display
• Quick parameter navigation

Applications

• MICROMASTER 420 series drive systems
• MICROMASTER 440 series drive systems
• Industrial automation applications
• Motor control systems
• Variable frequency drive installations
• Drive commissioning and setup
• Parameter backup and maintenance

Alternative Options

When higher level of control or expanded functionality is required:

• Advanced Operator Panel (AOP) for enhanced features
• PC-based parameter software via RS232 interface
• Communication modules for remote monitoring
