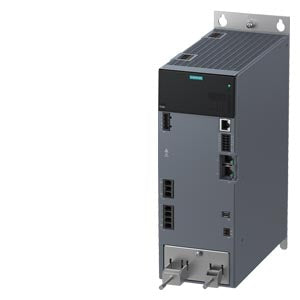

Siemens Sinamics S210 Frequency converter, 200 - 480V, 5kW

Product Overview

SINAMICS S210 input voltage 200-480 V 3AC 4 -10%/+10% 15.0 A 45-66 Hz output voltage: 0 input V 12.0A 0-550 Hz motor: 5.0 kW degree of protection: IP20 frame size C 105 x 322 x 223 (WxHxD). This high-performance single-axis AC/AC servo converter system is designed for demanding Motion Control applications in the mid-range power spectrum, offering exceptional dynamic response and precision control for industrial automation systems.

Product Status Notice

Important: This product has been phased out since 01.10.2024. The successor model is 6SL5310-1BE15-0DF0. Please consider the successor model for new installations and system upgrades.

Key Features

• High Performance: 5.0 kW motor power with precise servo control
• Wide Voltage Range: 200-480 V 3AC input voltage tolerance
• PROFINET Integration: Integrated PROFINET communications interface
• One Cable Connection: Simplified motor connection with OCC interface
• Safety Functions: Integrated safety functions and PROFIsafe profile
• Compact Design: Frame size C with optimized footprint

Technical Specifications

• Article Number: 6SL3210-5HE15-0UF0
• Product Series: SINAMICS S210 Servo Drive System
• Input Voltage: 200-480 V 3AC, -10%/+10% tolerance
• Input Current: 15.0 A
• Frequency Range: 45-66 Hz
• Output Current: 12.0 A
• Motor Power: 5.0 kW
• Output Frequency: 0-550 Hz
• Protection Degree: IP20
• Frame Size: C
• Net Weight: 5.1 kg

Physical Specifications

• Width: 105 mm
• Height: 322 mm
• Depth: 223 mm
• Frame Size: C
• Mounting: Standard DIN rail or panel mounting
• Cooling: Fan cooling system
• Protection Rating: IP20
• Weight: 5.1 kg

Electrical Characteristics

• Input Voltage: 200-480 V 3AC
• Voltage Tolerance: -10%/+10%
• Input Current: 15.0 A
• Input Frequency: 45-66 Hz
• Output Current: 12.0 A (continuous)
• Output Frequency: 0-550 Hz
• Motor Power: 5.0 kW
• Control Method: Vector control with encoder feedback

Communication and Control

• Communication Interface: PROFINET integrated
• Protocol Support: PROFIdrive profile for positioning mode
• Safety Communication: PROFIsafe profile for safety-related functions
• Controller Integration: SIMATIC S7 and SIMOTION compatibility
• Current Controller: 62.5 μs clock cycle
• Pulse Frequency: 8 kHz

Motor Integration

• Compatible Motors: SIMOTICS S-1FK2 servomotors
• Connection System: One Cable Connection (OCC) interface
• Motor Data: Electronic motor type plate data readout
• Encoder Interface: High-resolution encoder support
• Commissioning: Simplified commissioning with automatic motor recognition

Applications

• Motion Control: Precision positioning and motion control systems
• Packaging Machinery: High-speed packaging and processing equipment
• Assembly Lines: Automated assembly and manufacturing systems
• Robotics: Industrial robotics and automation applications
• Machine Tools: CNC machines and precision machining equipment
• Material Handling: Conveyor systems and material handling equipment

System Integration

• Automation Systems: SIMATIC S7 automation system integration
• Motion Controllers: SIMOTION controller compatibility
• Technology Objects: Connection via technology objects and Motion Control blocks
• Safety Integration: Safety-related communication and functions
• Fieldbus: PROFINET fieldbus integration

Performance Features

• Dynamic Response: High-performance servo control with fast response
• Positioning Accuracy: Precise positioning with encoder feedback
• Overload Capability: High overload capability for demanding applications
• Current Control: Fast current controller with 62.5 μs cycle time
• Frequency Response: Wide output frequency range 0-550 Hz

Safety Features

• Safety Functions: Integrated safety functions
• PROFIsafe: Safety-related communication protocol
• Safe Operation: Safety-related shutdown and monitoring functions
• Overcurrent Protection: Integrated overcurrent protection
• Thermal Protection: Thermal monitoring and protection

Quality & Compliance

• Country of Origin: Germany
• RoHS Compliance: Since 06.11.2019
• Export Control: AL : N / ECCN : 9N9999
• Product Class: B (return restricted)
• WEEE Compliance: Take-back obligation applicable
• EAN: 4042948690260
• UPC: 195125049406

Environmental Specifications

• Operating Temperature: Industrial standard temperature range
• Storage Temperature: Extended storage temperature range
• Humidity: Industrial humidity tolerance
• Vibration: Designed for industrial vibration conditions
• Pollution Degree: Suitable for industrial pollution environments

Packaging Information

• Packaging Dimensions: 400 x 345 x 115 mm
• Quantity Unit: 1 piece
• Packaging Quantity: 1 unit
• Net Weight: 5.1 kg
• Industrial Packaging: Protected packaging for safe transport

Installation and Mounting

• Mounting Options: DIN rail or panel mounting
• Cooling Requirements: Fan cooling system included
• Cable Connections: Standard industrial cable connections
• Space Requirements: Compact frame size C design
• Installation Environment: Indoor industrial environment

Commissioning Benefits

• Simplified Setup: One Cable Connection for easy motor connection
• Automatic Recognition: Electronic motor type plate data readout
• Parameter-Free: Eliminates need for manual motor data entry
• Quick Commissioning: Reduced commissioning time and effort
• Plug-and-Play: Ready-to-use system with minimal configuration

Successor Model Information

• Current Model: 6SL3210-5HE15-0UF0 (phased out)
• Successor Model: 6SL5310-1BE15-0DF0
• Transition Date: Product phase-out since 01.10.2024
• Recommendation: Consider successor model for new projects
• Compatibility: Successor model offers improved features and performance

Related Products

• SIMOTICS S-1FK2 Motors: Compatible servomotors
• MOTION-CONNECT: Connection systems and cables
• SIMATIC S7 Controllers: Compatible automation controllers
• SIMOTION Controllers: Motion control systems
• Safety Components: Safety-related components and modules

Technical Support

• Installation Support: Technical support for installation and setup
• Configuration Assistance: PROFINET and motion control configuration
• Troubleshooting: Diagnostic and troubleshooting support
• Documentation: Comprehensive technical documentation
• Training: Available training on servo drive systems

Advantages

• High Performance: Excellent dynamic response and precision
• Easy Integration: Simple integration with SIMATIC systems
• Reliable Operation: Proven technology for industrial applications
• Flexible Configuration: Adaptable to various motion control requirements
• Cost-Effective: Competitive solution for mid-range applications

REACH Compliance Information

This product contains the following substances of the candidate list in concentrations higher than 0.1% w/w:

• Lead
• Lead monoxide (lead oxide)
• 4,4'-isopropylidenediphenol (Bisphenol A, BPA)

These substances are not expected to pose risks when the product is used as intended.
