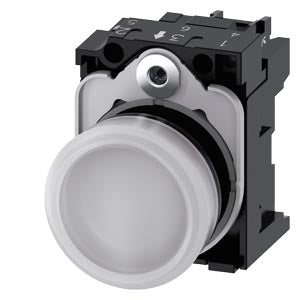

Siemens Indicator light, 22mm, round, white, screw, LED, 230V

Product Overview

Indicator lights, 22 mm, round, plastic, white, lens, smooth, with holder, LED module, with integrated LED 230 V AC, screw terminal.

Technical Specifications

Article Number: 3SU1106-6AA60-1AA0

Product Description: Indicator lights, 22 mm round plastic white lens with smooth design configuration. Features integrated holder with LED module and integrated LED for 230 V AC operation using screw terminal connections.

Key Features:

• 22 mm round plastic construction
• White lens with smooth surface design
• LED module with integrated LED
• 230 V AC operation
• Screw terminal connection type
• Complete with holder assembly
• Indicator light function (non-switching)

Technical Data:

• Net Weight: 0.043 kg
• Packaging Dimensions: 98.00 x 151.00 x 34.00 mm
• EAN: 4011209959545
• Country of Origin: Czech Republic
• Product Lifecycle: PM300: Active Product

Compliance Information:

• Export Control Regulations: AL: N / ECCN: N
• RoHS Compliance: Since 01.10.2014
• WEEE Take-Back Obligation: Yes
• IP Rating: IP67/IP69K

REACH Article 33 Information: This product includes articles containing substances from the candidate list in concentrations higher than 0.1% weight by weight (w/w):

• Lead monoxide (lead oxide)
• 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one

Based on current available information, these substances do not pose risk when articles are used as intended (including disposal). Please refer to product documentation for additional information.

Classification Standards:

• eClass: 27-37-12-23 (versions 6, 7.1, 8, 9, 9.1, 12, 14)
• ETIM: EC000272 (versions 7, 8, 9)
• UNSPSC: 39-12-15-34
