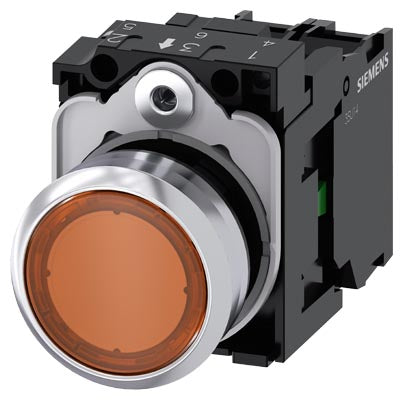

Siemens Illuminated pushbutton, metal, amber, momentary, 22mm, 1NO, 24VAC/DC Part number 3SU1152-0AB00-1BA0

Product Overview

The Siemens SIRIUS ACT 3SU1152-0AB00-1BA0 is a complete illuminated pushbutton unit with a flat amber actuator and integrated LED module for 24 V AC/DC operation. Designed with a high-quality metal front ring and a 22 mm mounting diameter, it ensures reliable performance, long service life, and excellent visual indication for use in control panels and industrial operator interfaces.

Key Features

• Complete illuminated pushbutton with flat amber actuator
• Integrated LED module, 24 V AC/DC operation
• Momentary (spring-return) function for clear tactile response
• Metal shiny front ring for robust design and aesthetic finish
• High protection class on front: IP66 / IP67 / IP69 / IP69K
• Quick and secure screw terminal connections
• Modular system compatible with SIRIUS ACT components

Technical Specifications

• Product Series: Siemens SIRIUS ACT
• Article Number: 3SU1152-0AB00-1BA0
• Actuator Type: Flat pushbutton, illuminated, amber
• Function Type: Momentary (spring-return)
• Contact Type: 1 NO (normally open)
• Rated Supply Voltage: 24 V AC/DC
• Mounting Diameter: 22 mm
• Front Ring Material: Metal, shiny finish
• Protection Class (Front): IP66 / IP67 / IP69 / IP69K
• Protection Class (Rear): IP20 (terminals)
• Rated Insulation Voltage (Ui): 320 V
• Rated Impulse Withstand Voltage (Uimp): 4 kV
• Operating Temperature: –25 °C to +70 °C
• Storage Temperature: –40 °C to +80 °C
• Mechanical Service Life: Approx. 3 million operations
• Electrical Endurance: Approx. 10 million operations
• Installation Depth: Approx. 49.7 mm
• Net Weight (Approx.): 0.077 kg

Compliance & Certifications

• Complies with IEC 60947-5-1 and EN 60947-5-1 standards
• Certified for industrial use in control panels and automation systems
• RoHS compliant, halogen-free, and silicon-free materials

Applications

The 3SU1152-0AB00-1BA0 is ideal for use in industrial automation panels, machine control stations, and process control environments. Its durable design and high ingress protection make it suitable for harsh conditions, ensuring clear operator input and reliable illuminated indication in machinery, conveyors, and production systems.
