Product Overview

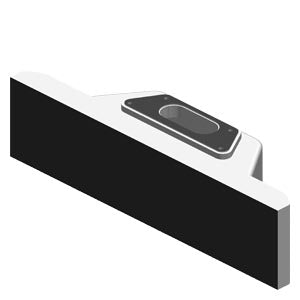

Extension Unit 15" PROFISAFE compatible with all IP65 fully enclosed 16:9 HMI/IPC devices. Flexible configuration of control elements; 8 mounting positions; 8 control elements can be installed; PROFISAFE connection (control elements ordered separately)

Key Features

• PROFISAFE Connectivity: Safety-certified extension unit with integrated PROFISAFE communication for fail-safe industrial applications
• Flexible Configuration: 8 mounting positions allow customizable installation of various control elements to meet specific operational requirements
• Universal Compatibility: Compatible with all IP65 fully enclosed 16:9 HMI/IPC devices for seamless system integration
• Modular Design: Control elements ordered separately, enabling tailored solutions for different automation applications

Technical Specifications

• Article Number: 6AV7674-1LA43-0AA0
• Size & Configuration: 15" Extension Unit with 8 mounting positions for control elements
• Safety Features: PROFISAFE connection for safety-critical applications and emergency stop functions
• Compatibility: Designed for IP65 fully enclosed 16:9 HMI/IPC devices
• Physical Properties: Net Weight: 2.408 kg | Packaging: 11.60 x 43.20 x 11.60 cm
• Identifiers: EAN: 4025515738800 | UPC: 804766497803 | Country of Origin: Germany

Applications

• Ideal for expanding HMI/IPC systems with additional safety-rated control elements in industrial automation
• Machine control and process monitoring applications
• Safety-critical applications requiring PROFISAFE connectivity
• Control panel integration and operator interface expansion

Installation & Configuration

• Mounting: Compatible with 16:9 PRO devices for pedestal (expandable, flange bottom) and support arm (expandable, round tube) configurations
• Control Elements: Supports installation of emergency stops, pushbuttons, selector switches, LED indicators, and reader devices (ordered separately)
• Safety Integration: PROFISAFE connection enables integration into safety control systems with appropriate safety monitoring

Compliance

• Status: PM300: Active Product | RoHS Compliant since 31.07.2017 | Export Control: AL: N / ECCN: N
• Safety Standards: Meets EN 12417:2001+A2:2009 for machine tools safety and relevant industrial automation standards
• REACH: Contains Lead, Lead monoxide, Silicic acid lead salt, and 4-tert-butylphenol in concentrations >0.1% w/w (no risk when used as intended)
• Note: Professional installation required. Control elements must be configured and programmed according to safety requirements and system specifications.
