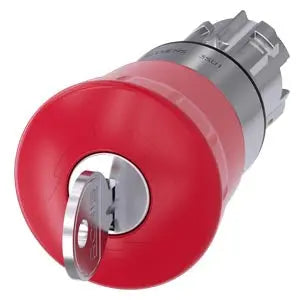

Siemens Emergency stop pushbutton, red, key-operated release

Product Overview

EMERGENCY STOP mushroom pushbutton, 22 mm, round, metal, shiny, red, 40 mm, with RONIS lock, lock number SB30, positive latching, acc. to EN ISO 13850, key-operated release. Part of the SIRIUS ACT series, this emergency stop pushbutton is engineered for safety systems requiring enhanced security and controlled access. The RONIS lock system with key-operated release ensures that only authorized personnel can reset the emergency stop condition, providing an additional layer of safety control in critical applications.

Article Number: 3SU1050-1HF20-0AA0

Technical Specifications:

• Button Color: Red
• Design: Round mushroom head design
• Cap Diameter: 40 mm
• Hole Diameter: 22.3 mm
• Opening Width: 40 mm
• Opening Height: 67.1 mm
• Contact Type: Positive latching with key-operated release
• Lock System: RONIS lock, number SB30
• Standard Compliance: EN ISO 13850
• Protection Rating: IP66/IP67/IP69K
• NEMA Rating: 1/2/3/3R/4/4X/12/13
• Operating Temperature: -25 to 70°C
• Storage Temperature: -40 to 80°C

Physical Properties:

• Net Weight: 0.115 kg
• Packaging Dimensions: 62.00 x 80.00 x 55.00 mm
• EAN: 4011209947016
• Country of Origin: Germany
• Packaging Quantity: 1 piece

Safety & Security Features:

• Emergency Stop Function: Compliant with EN ISO 13850 safety standard
• Positive Latching: Remains engaged until key-operated reset
• RONIS Lock System: Enhanced security with lock number SB30
• Key-Operated Release: Controlled access for authorized personnel only
• High Visibility: Red color for immediate emergency identification
• Tamper Resistance: Lock mechanism prevents unauthorized reset

Compliance & Environmental:

• Product Lifecycle: PM300: Active Product
• RoHS Compliance: Since 01.10.2014
• Export Control: AL: N / ECCN: N
• WEEE Take-Back Obligation: Yes
• REACH Article 33: Compliant - No SVHC substances currently identified

Classification:

• eClass: 27-37-12-12 (versions 6, 7.1, 8, 9, 9.1, 12, 14)
• ETIM: EC001038 (versions 7, 8, 9)
• UNSPSC: 39-12-22-21
