Siemens

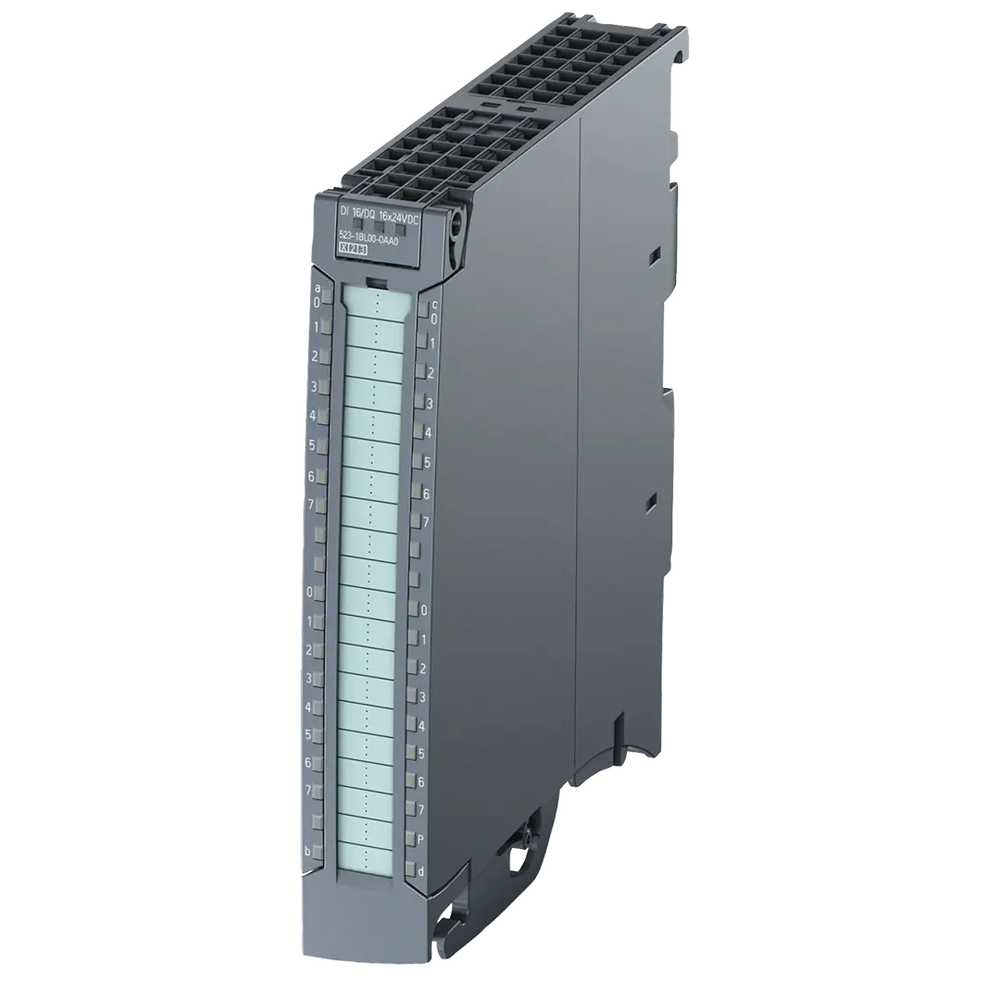

Siemens Digital input/output module, 16DI x 24VDC Part number 6ES7523-1BL00-0AA0

EAN / Barcode 4047623402312
Product Type Control Panel
Product Class PLC digital I/O-module
ETIM Class PLC digital I/O-module
Back Order
💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration♻ EPD🌱 EcoTech Profile

Product Description

SIMATIC S7-1500 digital input/output module, DI16x 24VDC BA, 16 channels in groups of 16, input delay typ. 3.2 ms input type 3 (IEC 61131), DQ16X24 V DC/0.5A BA; 16 channels in groups of 8; 4 A per group; the module supports the safety-oriented shutdown of load groups up to SILCL1 according to EN 62061:2005 + A2:2015, and Category 2 / PL c according to EN ISO 13849-1:2015. delivery incl. front connector push-in.

Technical Specifications

Depth129 mm
Digital inputs configurableYes
Digital outputs configurableYes
Height147 mm
Input current at signal 12.7 mA
Number of digital inputs16
Number of digital outputs16
Output current0.5 A
Permitted voltage at input-30 V
Permitted voltage at output28.8 V
Short-circuit protection, outputs availableYes
Supply voltage DC28.8 V
Time delay at signal change1.2 ms
Type of digital outputTransistor
Type of output voltageDC
Type of voltage (input voltage)DC
Voltage type (supply voltage)DC
Width25 mm
Part Width15 mm
Part Height20 mm
Part Depth3 mm
Weight358 g
Country of OriginGermany
