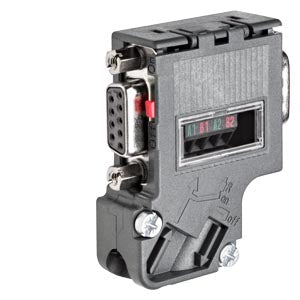

Siemens Connection plug for profibus, up to 12 Mbit/s Part number 6ES7972-0BB42-0XA0

Name: Siemens Connection plug for profibus, up to 12 Mbit/s
Brand: Siemens
SKU: 6ES7972-0BB42-0XA0

EAN / Barcode 4025515078296

Product Type Control Panel

Product Class Rectangular connector, set (industrial connector)

Category HMI's & PLC's

Sub-category Accessories

ETIM Class Rectangular connector, set (industrial connector)

Back Order

💬 Ask an Expert - Technical Support Available

Product Description

SIMATIC DP, Connection plug for PROFIBUS up to 12 Mbit/s with inclined cable outlet, 15.8x 54x 39.5 mm (WxHxD), terminating resistor with isolating function, With PG receptacle Zubehör für SIMATIC DP

Technical Specifications

Ambient temperature	-40 °C
Degree of protection (IP), mounted	IP20
Depth	39.5 mm
Height	54 mm
Housing material	Plastic
Operating temperature	60 °C
Type of locking	Gland nut
Width	15.8 mm
Part Width	6 mm
Part Height	7 mm
Part Depth	3 mm
Weight	47 g
Country of Origin	Germany
