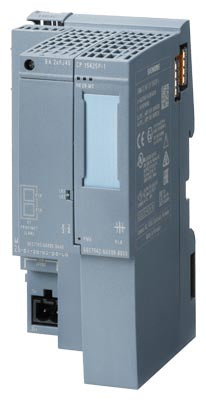

Siemens Communications processor CP 1542SP-1 Part number 6GK7542-6UX00-0XE0

Product Overview

Siemens Communications Processor CP 1542SP-1 for ET 200SP / Industrial Ethernet (6GK7542-6UX00-0XE0) is a network interface module that enables a distributed I/O station based on SIMATIC ET 200SP to connect to Industrial Ethernet or PROFINET networks. It acts as a gateway between the ET 200SP backplane bus and Ethernet, allowing I/O, diagnostics, and controller communication over standard industrial network infrastructure. This module supports open-IE communication, S7 routing, and various network protocols — making it essential for integrating field I/O systems with higher-level automation, SCADA or process-control networks.

Key Features

• Communications processor for ET 200SP distributed I/O system
• Industrial Ethernet / PROFINET interface for I/O station networking
• Supports open-IE protocols: TCP/IP, ISO-on-TCP, UDP — enabling flexible network integration
• Supports S7 communication and routing (connections to S7 controllers and networked devices)
• Network services: DHCP, SNMP v1, NTP (time synchronization), IPv4 and IPv6 addressing support
• Web-server access and diagnostics for remote monitoring of I/O station health and status
• Compact DIN-rail mounting module — integrates into ET 200SP racks with minimal footprint
• Wide ambient temperature and humidity tolerance — suited for industrial environments

Technical Specifications

• Article Number: 6GK7542-6UX00-0XE0
• Device Type: Communications Processor (CP 1542SP-1)
• Network Interface: 1 × Industrial Ethernet (10/100 Mbps)
• Supply Voltage: 24 V DC (via ET 200SP backplane bus)
• Power Consumption: approx. 6 W
• Data Connections / Throughput: Supports S7 routing, open-IE connections, up to 16 S7 client/ server connections (depending on configuration)
• Protocols Supported: PROFINET, TCP/IP, ISO-on-TCP, UDP, DHCP, SNMPv1, NTP, IPv4/IPv6, etc.
• Diagnostics & Management: Web-based diagnostics, I&M data support, network management and monitoring capabilities
• Mounting: DIN-rail (35 mm top-hat rail) — part of ET 200SP rack system
• Dimensions (W × H × D): 60 mm × 117 mm × 74 mm
• Net Weight: approx. 0.18 kg
• Operating Ambient Temperature: –30 °C … +50 °C (vertical installation); up to +60 °C with horizontally arranged busbars
• Relative Humidity (operation): up to 95 % (non-condensing at 25 °C)
• Protection Class: IP20 (for internal cabinet use)

Applications

The 6GK7542-6UX00-0XE0 is ideal for industrial automation systems where a distributed I/O system (ET 200SP) needs to be connected to Ethernet or PROFINET networks. Typical applications include factory automation, machine control panels, process control systems, building automation networks, remote I/O installations, and SCADA-integrated systems. It facilitates communication between remote I/O modules and central controllers (e.g. SIMATIC S7), enabling centralized control, monitoring, diagnostics and data exchange over standard industrial Ethernet infrastructure.
