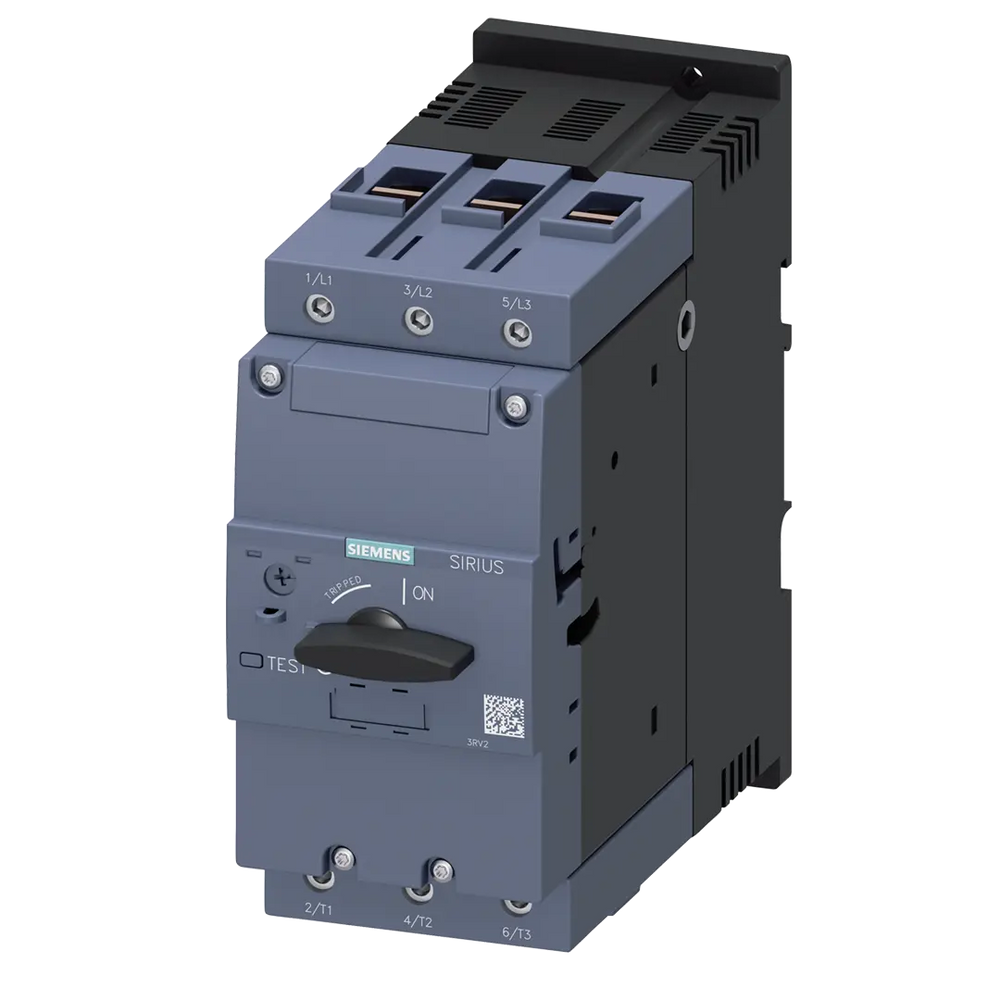

Siemens Circuit breaker for motor protection, size S3, 1300A

SKU / Article No. 3RV2041-4YA10
Product Type Control Panel
Product Class Motor protection circuit-breaker
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available

Product Description

The SIRIUS circuit breaker 3RV2041-4YA10 from Siemens in size S3 is a compact, current-limiting circuit breaker for load feeders up to 45 kW at AC-3/400 V. Due to a short-circuit protection of 1300 A and an adjustable overload protection of 75 - 93 A, the circuit breaker is ideally suited for the protection of motors.

Technical Specifications

IP RatingIP20
IP Rating DetailedIP20 touch protection on the front according to IEC 60529 finger
Compliance/StandardsIEC 61508-2, IEC 61508, IEC 60529, EN 60715, IEC 60068-2, IEC 81346-2
Part Width (mm)170,00mm
Part Height (mm)190,00mm
Part Depth (mm)80,00mm
Weight (g)2,283 Kg
descriptionCircuit breaker size S3 for motor protection, CLASS 10 A-release 75...93 A N-release 1300 A screw terminal Standard switching capacity
country_of_originGermany
