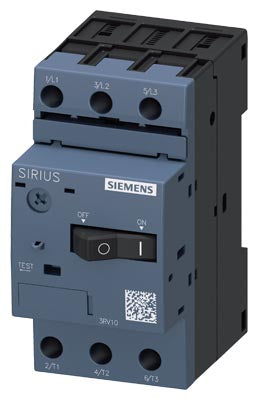

Siemens Circuit breaker for motor protection, screw, size S00, 8.2A Part number 3RV1011-0GA10

Product Overview

The Siemens 3RV1011-0GA10 is the Siemens SIRIUS 3RV10 Motor Protection Circuit Breaker, size S00 (0.45–0.63 A). It is designed to protect motors and low-current loads against overloads, short-circuits and phase failures — ideal for small motor circuits, control panels, or feeder circuits requiring reliable protection in a compact footprint.

Key Features

• Compact motor-protection circuit breaker (SIRIUS 3RV1 / 3RV10 series, size S00)
• Adjustable thermal overload release range: 0.45 … 0.63 A
• Three-pole main contacts for three-phase circuits
• Thermal + magnetic (short-circuit) protection built in
• High short-circuit breaking capacity: up to 100 kA (AC, up to 690 V)
• Screw-terminal connections — secure wiring even under vibration
• DIN-rail (35 mm) or screw mounting — easy installation in distribution or control panels
• Compact dimensions and light weight — suitable for space-constrained panels or retrofit setups
• Manual reset and lockable OFF position — suitable for safety / maintenance applications

Technical Specifications

• Article Number: 3RV1011-0GA10
• Size / Frame: S00
• Poles: 3 (three-phase)
• Adjustable Overload Current (I_n): 0.45 … 0.63 A
• Rated Operating Voltage: up to 690 V AC
• Short-Circuit Breaking Capacity (Icu / Ics): up to 100 kA (at 240–690 V AC)
• Switching Frequency (max): 15 operations/hour
• Mechanical & Electrical Life: ~100,000 operations
• Power Loss at Rated Current: 5.5 W (total) — ~1.8 W per pole
• Mounting Method: Snap-on or screw mounting on 35 mm DIN rail
• Connection Terminals: Screw terminals, top/bottom connection
• Ambient Operating Temperature: –20 °C … +60 °C
• Weight (approx.): 225 g

Compliance & Certifications

• Compliant with IEC / EN 60947 standards for low-voltage circuit breakers and motor protection devices
• Suitable for three-phase motor protection, feeder protection, and general load protection in industrial and commercial installations
• Approved for use in typical control and distribution panels with proper wiring and environmental conditions

Applications

The 3RV1011-0GA10 is ideal for protecting small motors, pumps, fans, or control-panel circuits against overloads and short-circuits. It is also suitable for feeder circuits, small machine control, sub-distribution protection, and installations where compact size, reliable protection, and flexible mounting are required. Its adjustable current range and high breaking capacity make it versatile for low-current three-phase systems or small motor loads.
