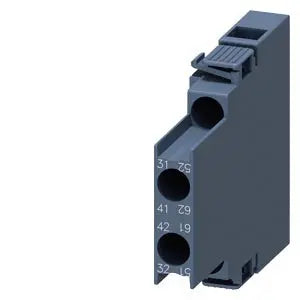

Siemens Auxiliary switch lateral, screw, 2NC current path
Log in to view pricing
Sign in with your trade account to access live pricing and place orders. New to Rubicon Industrial Technology? Create an account in seconds.
Product Description
Product Overview

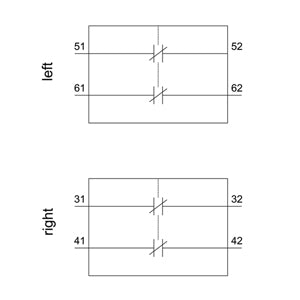

Auxiliary switch designed for lateral mounting with 2 NC (normally closed) contacts, configured with left side terminals 51/52, 61/62 and right side terminals 31/32, 41/42, featuring current path configuration of 1 NC, 1 NC, with screw terminal connections. This auxiliary switch is specifically designed for use with contactors 3RT2 and contactor relays 3RH2 series.
Key Specifications:
Electrical Characteristics:
- Contact Configuration: 2 NC (normally closed)
- Left Side Terminals: 51/52, 61/62
- Right Side Terminals: 31/32, 41/42
- Current Path: 1 NC, 1 NC
- Connection Type: Screw terminal
Physical Characteristics:
- Net Weight: 0.037 kg
- Packaging Dimensions: 60.00 x 70.00 x 20.00 mm
- Packaging Quantity: 1 piece
Product Details:
- Article Number: 3RH2921-1DA02
- EAN: 4011209790278
- UPC: 662643908480
- Country of Origin: Romania
- Product Lifecycle: PM300 Active Product
Compatibility:
- Compatible with contactors 3RT2 series
- Compatible with contactor relays 3RH2 series
- Lateral mounting design
Installation Features:
- Lateral-mounted auxiliary switch
- Screw terminal connections
- Instantaneous operation
- Dual NC contact configuration
Compliance & Standards:
- RoHS Compliant: Since 01.10.2009
- WEEE Take-Back Obligation: Yes
- Export Control: AL: N / ECCN: N
Product Classification:
- eClass: 27-37-13-02
- ETIM: EC000041
- UNSPSC: 39-12-15-22
Download existing graphical data for this product:
Additional Information
| IP Rating | IP20 |
| IP Rating Detailed | IP20 mechanical service life (operating cycles) typical 10 000 000 electrical endurance (operating cycles) at AC |
| Compliance/Standards | IEC 60947-4, IEC 60947-5 |
| Part Width (mm) | 60,00mm |
| Part Height (mm) | 70,00mm |
| Part Depth (mm) | 20,00mm |
| Weight (g) | 0,040 Kg |
| description | auxiliary switch, lateral, 2 NC, on the left: 51/52, 61/62, on the right: 31/32, 41/42, current path: 1 NC, 1 NC, screw terminal, for contactors 3RT2 and contactor relays 3RH2 |
| country_of_origin | Czech Republic |
Technical Documentation & Downloads
Additional Datasheet

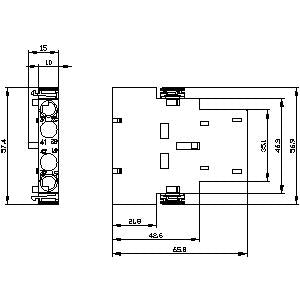

Dimensional Drawing
